Introduction

Maintaining the correct storage temperature is essential for preserving the quality, fluidity, and processing efficiency of edible oils. Products such as palm oil, coconut oil, tallow, cocoa butter, and other high-melting-point fats can solidify or increase significantly in viscosity when stored below their recommended temperatures, making pumping, transfer, and processing more difficult.

To address these challenges, heated stainless steel storage tanks are widely used throughout the edible oil industry. Among the available heating solutions, heating jackets and heating coils are the two most common designs. Although both systems serve the same purpose, they differ in heating efficiency, temperature uniformity, maintenance requirements, and application scenarios.

Understanding these differences helps processors select the most suitable solution for their production process and long-term operational goals.

Why Temperature Control Matters in Edible Oil Storage

Many edible oils are highly sensitive to temperature fluctuations. Improper storage temperatures may lead to:

• Increased oil viscosity

• Partial or complete solidification

• Difficult product transfer

• Reduced pumping efficiency

• Uneven product quality

• Higher energy consumption during reheating

For oils with higher melting points, maintaining a stable storage temperature is not simply a matter of convenience—it is essential for ensuring continuous production and protecting product quality.

What Is a Heating Jacket?

A heating jacket is an external chamber welded around the tank wall or bottom. Steam, hot water, or thermal oil circulates through the jacket, transferring heat indirectly to the product inside the tank.

Because the heating medium does not come into direct contact with the edible oil, jacketed tanks provide gentle and uniform heat transfer while maintaining hygienic conditions.

Typical heating media include:

• Steam

• Hot water

• Thermal oil

Heating jackets are commonly used for:

• Palm oil

• Coconut oil

• Vegetable oils

• Animal fats

• Food ingredients requiring stable temperature control

Advantages of Heating Jacket Systems

Uniform Heat Distribution

The large contact area between the jacket and the tank wall allows heat to be distributed evenly throughout the vessel, minimizing localized overheating and protecting heat-sensitive products.

Improved Product Quality

Gentle indirect heating helps preserve the physical and chemical properties of edible oils, reducing the risk of thermal degradation during storage.

Excellent Energy Efficiency

Jacketed tanks make efficient use of heating energy, especially when combined with insulation systems that minimize heat loss.

Low Maintenance Requirements

Since there are no internal heating components inside the product area, jacketed tanks are easier to clean and maintain while meeting strict food hygiene standards.

What Is a Heating Coil?

A heating coil consists of stainless steel tubing installed inside the storage tank. Steam or thermal oil flows through the coils, transferring heat directly into the stored product.

Internal coils are commonly selected when faster heating or retrofitting existing tanks is required.

Advantages of Heating Coil Systems

Heating coil systems offer several practical benefits.

First, they provide relatively rapid heat transfer because the heating surface is immersed directly in the product. This makes them suitable for applications where stored oils must be reheated quickly before transfer or processing.

Second, internal coils can often be integrated into existing storage tanks, making them a cost-effective option for facility upgrades without replacing the entire tank.

For smaller storage systems or applications with limited installation space, heating coils can also provide an economical solution while delivering adequate heating performance.

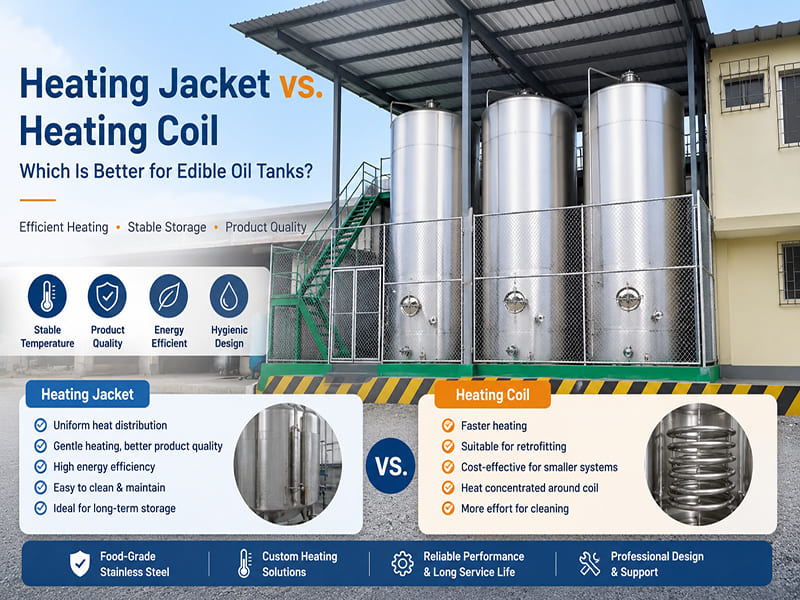

Heating Jacket vs. Heating Coil: Key Differences

For food-grade applications where hygiene and product consistency are priorities, jacketed tanks are generally the preferred solution.

Which Heating System Is Best for Different Oils?

Different edible oils have different storage requirements.

Palm Oil

Palm oil begins to crystallize at relatively high temperatures. Jacketed tanks provide gentle, uniform heating that helps maintain fluidity while preventing localized overheating.

Coconut Oil

Because coconut oil solidifies easily under cooler conditions, stable temperature control is essential throughout storage and transportation. Jacket heating combined with insulation offers excellent long-term performance.

Animal Fats and Tallow

Products such as tallow require continuous temperature maintenance due to their higher melting points. Jacketed systems provide consistent heating across large storage volumes.

Soybean, Sunflower, and Canola Oil

These oils generally require less heating but still benefit from temperature-controlled storage in colder climates or seasonal operations.

Selecting the Right Heating Solution

Choosing between a heating jacket and a heating coil depends on several factors, including:

• Oil type and melting point

• Storage capacity

• Heating medium availability

• Required temperature accuracy

• Cleaning requirements

• Production schedule

• Energy consumption targets

For most modern edible oil processing plants, jacketed tanks provide better long-term performance because they combine hygienic design, efficient heat transfer, and lower maintenance requirements.

However, heating coils remain a practical option for specific applications where rapid reheating or equipment modification is the primary objective.

Prettech Heated Edible Oil Tank Solutions

Prettech designs and manufactures customized stainless steel storage tanks for edible oils and fats, offering heating solutions tailored to different products and production processes.

Prettech heated tank systems can be equipped with:

• Steam jackets

• Hot water jackets

• Thermal oil heating systems

• High-performance insulation

• Temperature monitoring and automatic control

• Food-grade hygienic construction

• Customized capacities for processing plants and tank farms

Each system is engineered to provide reliable temperature control while maintaining product quality and operational efficiency.

Conclusion

Effective temperature management is essential for maintaining the quality and flowability of edible oils throughout storage and processing. While both heating jackets and heating coils provide reliable heating solutions, they are designed to meet different operational requirements.

Heating jackets offer superior temperature uniformity, hygienic performance, and energy efficiency, making them the preferred choice for most modern edible oil storage facilities. Heating coils, on the other hand, provide a practical solution for applications requiring faster reheating or retrofit installations.

By selecting the right heating system based on product characteristics and production needs, edible oil processors can improve operational efficiency, protect product quality, and reduce long-term operating costs.
