Fouling is one of the most common problems affecting the long-term performance of shell and tube heat exchangers. Deposits can accumulate on tube surfaces and gradually increase thermal resistance, reduce heat transfer efficiency, increase pressure drop, and make cleaning and maintenance more frequent.
For industrial heat exchanger users, fouling is not simply a maintenance issue. It is also closely related to equipment design, operating conditions, fluid properties, material selection, and cleaning accessibility.
Understanding the causes of fouling and considering fouling prevention during the design stage can help maintain stable heat transfer performance and reduce long-term operating costs.
Fouling occurs when unwanted materials accumulate on the heat transfer surfaces. The type and rate of fouling depend heavily on the process fluid and operating conditions.
Common fouling sources include:
Suspended solids and particles
Mineral deposits and scale
Corrosion products
Biological growth
Organic deposits
Crystallization or precipitation
Process-related deposits
The fouling mechanism can be different on the tube side and shell side. Therefore, both flow paths need to be considered when designing a heat exchanger for a fouling service.
The location of fouling has a direct impact on heat exchanger performance and maintenance.
Tube-side fouling can occur when the process fluid contains suspended solids, minerals, viscous components, or other materials that tend to deposit on the inner tube surfaces.
As deposits build up, the effective flow area becomes smaller. This can increase pressure drop and reduce the heat transfer performance of the exchanger.
Tube-side fouling is often easier to address when the exchanger is designed with suitable access for mechanical or chemical cleaning.
Shell-side fouling occurs on the outside surfaces of the tubes. Because the shell side contains the tube bundle and baffle arrangement, the flow path can be more complicated.
Poor flow distribution or low-velocity regions can increase the possibility of deposit accumulation. Baffle design and shell-side flow conditions therefore play an important role in fouling control.
Fluid velocity is one of the important factors affecting fouling.
When the flow velocity is too low, suspended particles and other fouling materials can have more opportunities to settle on heat transfer surfaces. Low-velocity or stagnant areas are particularly susceptible to deposit accumulation.
Increasing velocity can increase wall shear and help reduce the attachment of some deposits. However, simply increasing velocity is not always the best solution.
Excessive velocity can result in higher pressure drop, increased pumping requirements, erosion, or vibration.
Therefore, the objective is to find an appropriate operating velocity that balances fouling control, pressure drop, energy consumption, and equipment reliability. Alfa Laval also identifies velocity as an important parameter in fouling prevention and notes that low-velocity regions are particularly prone to deposition.
Temperature can significantly influence fouling behavior.
For some fluids, increasing the heat transfer surface temperature can accelerate chemical reactions, crystallization, polymerization, or precipitation. This can make deposits form more rapidly on the heat transfer surface.
Temperature differences between the process fluid and the heat transfer surface should therefore be considered during thermal design.
In applications where fouling is a major concern, the design should consider not only the required outlet temperature but also the temperature of the heat transfer surface and the characteristics of the process fluid.
There is no single fouling-prevention strategy suitable for every heat exchanger.
Before designing a shell and tube heat exchanger, engineers should understand:
Fluid viscosity
Solid or particle content
Corrosiveness
Scaling tendency
Operating temperature
Flow rate
Concentration
Chemical stability
For example, a relatively clean liquid and a slurry-containing process fluid may require very different tube arrangements, flow velocities, materials, and cleaning provisions.
This is why fouling tendency should be considered together with the actual process conditions rather than simply adding a large fouling factor to the design.
Material selection is usually discussed in terms of corrosion resistance and mechanical strength, but the heat transfer surface itself can also influence deposit formation.
Surface condition, material compatibility, and corrosion behavior should be considered together with the properties of the process fluid.
Pretank provides different material options according to the fluid, pressure, temperature, and application requirements, including SUS304, SUS316L, SUS316Ti, Hastelloy and other materials.
For corrosive or demanding services, choosing a suitable tube material can help reduce corrosion-related deposits and support long-term equipment reliability.
Baffles are important components on the shell side of a shell and tube heat exchanger. They support the tube bundle and guide the shell-side fluid across the tubes.
Proper flow guidance can improve turbulence and heat transfer while reducing undesirable low-flow regions.
However, baffle design also needs to consider pressure drop and tube vibration. Excessive shell-side velocity or an unsuitable flow path can create additional operating problems.
Therefore, baffle spacing, baffle configuration, shell diameter, tube arrangement, and allowable pressure drop should be considered together rather than independently.
Even with good fouling-control measures, some industrial processes will inevitably require periodic cleaning.
For this reason, cleanability should be considered during the initial equipment selection and design stage.
Important considerations include:
Accessibility to tube interiors
Removable tube bundles where appropriate
Mechanical cleaning requirements
Chemical cleaning compatibility
Inspection access
Drainage and venting
Expected cleaning frequency
For example, floating head heat exchangers allow the tube bundle to be removed for cleaning, while fixed tube sheet designs have more limited shell-side cleaning access. Pretank's own product information highlights maintenance and cleaning requirements as factors when selecting different shell-and-tube configurations.
Choosing the exchanger configuration based on the expected fouling condition can therefore help reduce future maintenance difficulties.

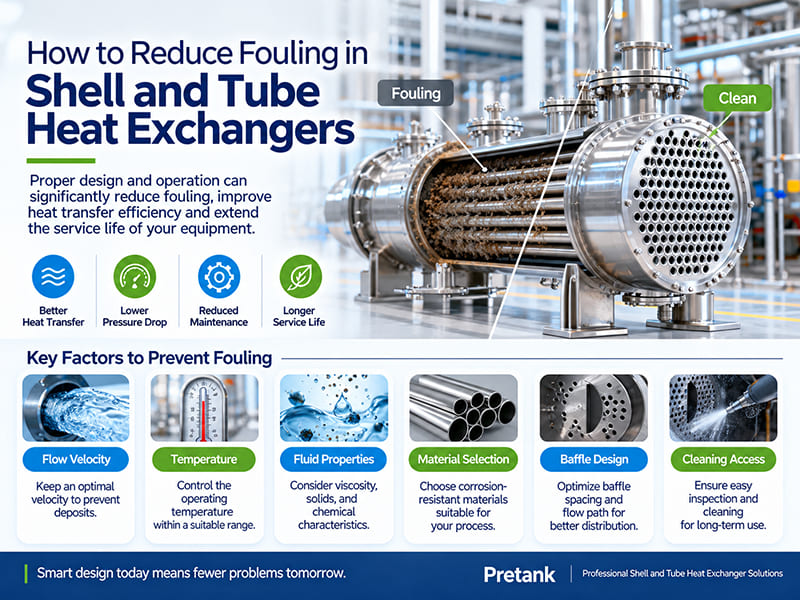

Fouling prevention should not depend on a single design feature. A more practical approach is to consider several factors together:
Process fluid → Flow velocity → Temperature → Material → Flow distribution → Cleanability
For example, a suitable design may combine:
Appropriate tube-side and shell-side velocities
Suitable tube material
Proper baffle arrangement
Adequate flow distribution
Controlled heat transfer surface temperature
Appropriate fouling allowance
Convenient cleaning and inspection access
The goal is not necessarily to eliminate fouling completely. Instead, the objective is to slow deposit formation, maintain acceptable heat transfer performance, and make periodic maintenance manageable.
Fouling can often be identified through changes in operating data.
Typical warning signs include:
Declining heat transfer performance
Increasing pressure drop
Increasing approach temperature
Higher pumping requirements
More frequent cleaning
Difficulty maintaining the required outlet temperature
A gradual reduction in thermal performance combined with increased pressure drop can be a useful indication that deposits are accumulating inside the exchanger. Regular monitoring makes it easier to identify fouling before it causes significant production problems.
Pretank designs and manufactures shell and tube heat exchangers for different industrial applications, including fixed tube sheet, U-tube, floating head and stuffing box configurations. The company states that heat exchanger materials are selected according to the fluid, pressure and temperature requirements, with options including SUS304, SUS316L, SUS316Ti and Hastelloy.
For applications where fouling is an important concern, the heat exchanger can be designed around the actual process conditions, including fluid properties, flow requirements, material compatibility and maintenance requirements.
Fouling cannot always be completely avoided in industrial heat exchangers, but its impact can be controlled through proper design and operation.
Fluid velocity, temperature, fluid properties, material selection, baffle design, flow distribution and cleaning accessibility all play a role in determining how quickly deposits form and how easily they can be removed.
For a new shell and tube heat exchanger, considering fouling conditions from the beginning can help maintain heat transfer performance, reduce unplanned maintenance, and achieve more reliable long-term operation.
