In modern chemical processing, mixing is far more than a routine step—it is a critical factor that directly influences product quality, process stability, and overall production efficiency. From coatings and resins to daily chemicals and water treatment, the performance of a mixing system can determine the success of the entire operation.
At the heart of every efficient mixing process lies one key component: the agitator.
Agitators are designed to ensure uniform mixing, promote mass and heat transfer, and maintain consistent product properties throughout the production cycle.
A well-designed agitator can:
Improve homogeneity of chemical mixtures
Reduce processing time
Enhance reaction efficiency
Prevent sedimentation or phase separation
On the other hand, improper agitator selection may lead to uneven mixing, increased energy consumption, and even product defects.
Selecting the right agitator involves more than choosing a motor. Several critical parameters must be considered to match the mixing system with the process requirements.

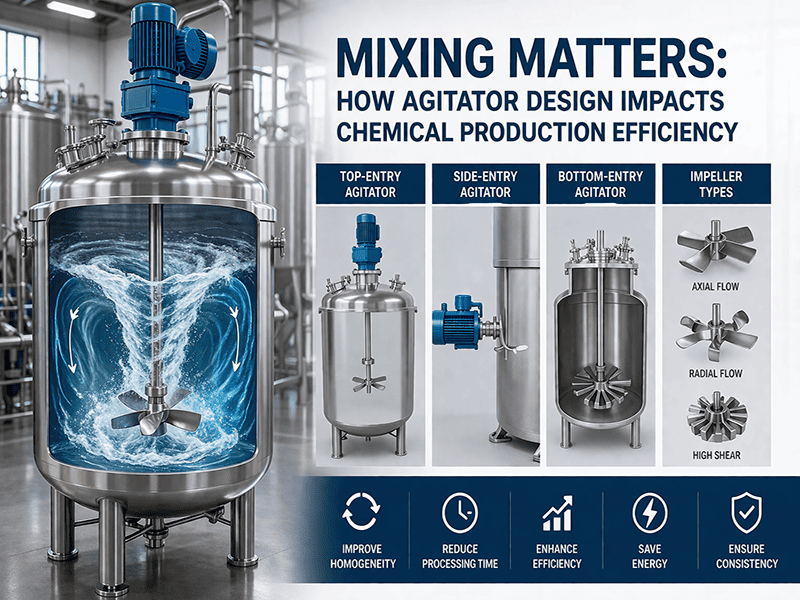

Different agitator types are suitable for different applications:
Top-mounted agitators
Ideal for general-purpose mixing and widely used in standard chemical tanks.
Side-entry agitators
Suitable for large storage tanks where full-volume circulation is required.
Bottom-mounted agitators
Designed for high-efficiency mixing, especially in processes requiring minimal residue and improved sanitation.
The impeller is the core of the agitator system. Its design determines the flow pattern inside the tank:
Axial flow impellers generate vertical circulation, ideal for blending and suspension.
Radial flow impellers create strong shear forces, suitable for dispersion and emulsification.
Choosing the correct impeller type ensures optimal mixing performance and energy efficiency.
The viscosity of the liquid significantly affects agitator performance.
Low-viscosity fluids require high flow and circulation
High-viscosity materials need stronger torque and specialized impeller designs
For example, resin and adhesive production often require customized agitators to handle thick and complex materials.
The design of the tank also plays an important role in mixing efficiency.
Factors include:
Tank diameter and height ratio
Presence of baffles
Liquid level during operation
Proper coordination between the agitator and tank design ensures effective mixing without dead zones.
Agitator speed and motor power must be carefully calculated based on process requirements.
High-speed mixing increases shear but may cause foaming
Low-speed mixing is suitable for gentle blending
Optimizing these parameters helps reduce energy consumption while maintaining consistent product quality.
In many industrial applications, standard mixing solutions are not sufficient.
Custom agitator systems are essential when:
Handling high-viscosity or non-Newtonian fluids
Integrating heating, cooling, or reaction processes
Meeting specific production or installation requirements
A tailored design ensures that the mixing system is fully aligned with the process, maximizing efficiency and reliability.
Efficient mixing is a cornerstone of modern chemical production, and agitator design plays a decisive role in achieving it.
By carefully considering factors such as agitator type, impeller design, viscosity, tank geometry, and operating parameters, manufacturers can significantly improve production efficiency, reduce costs, and ensure consistent product quality.
