Clean-in-Place (CIP) systems have become an important part of hygienic production for facilities using stainless steel tanks and piping networks. Instead of dismantling equipment for manual cleaning, a properly engineered CIP system circulates water and cleaning solutions through the process circuit, helping remove product residues while improving cleaning consistency and operational efficiency.
For food and beverage, dairy, pharmaceutical, chemical and other industries, selecting the right CIP system requires more than simply choosing a cleaning tank. Tank configuration, spray devices, pumps, temperature control, chemical concentration and automation all need to work together as one system.
A Clean-in-Place system is designed to clean the internal surfaces of tanks, pipes, valves and other process equipment without disassembly.
During a typical cleaning cycle, water and chemical solutions are circulated through the system and distributed inside the tank through dedicated spray devices. Temperature, flow, pressure and chemical concentration can be controlled according to the cleaning requirements.
The objective is to achieve repeatable, effective and hygienic cleaning while reducing manual intervention, water consumption and production downtime.

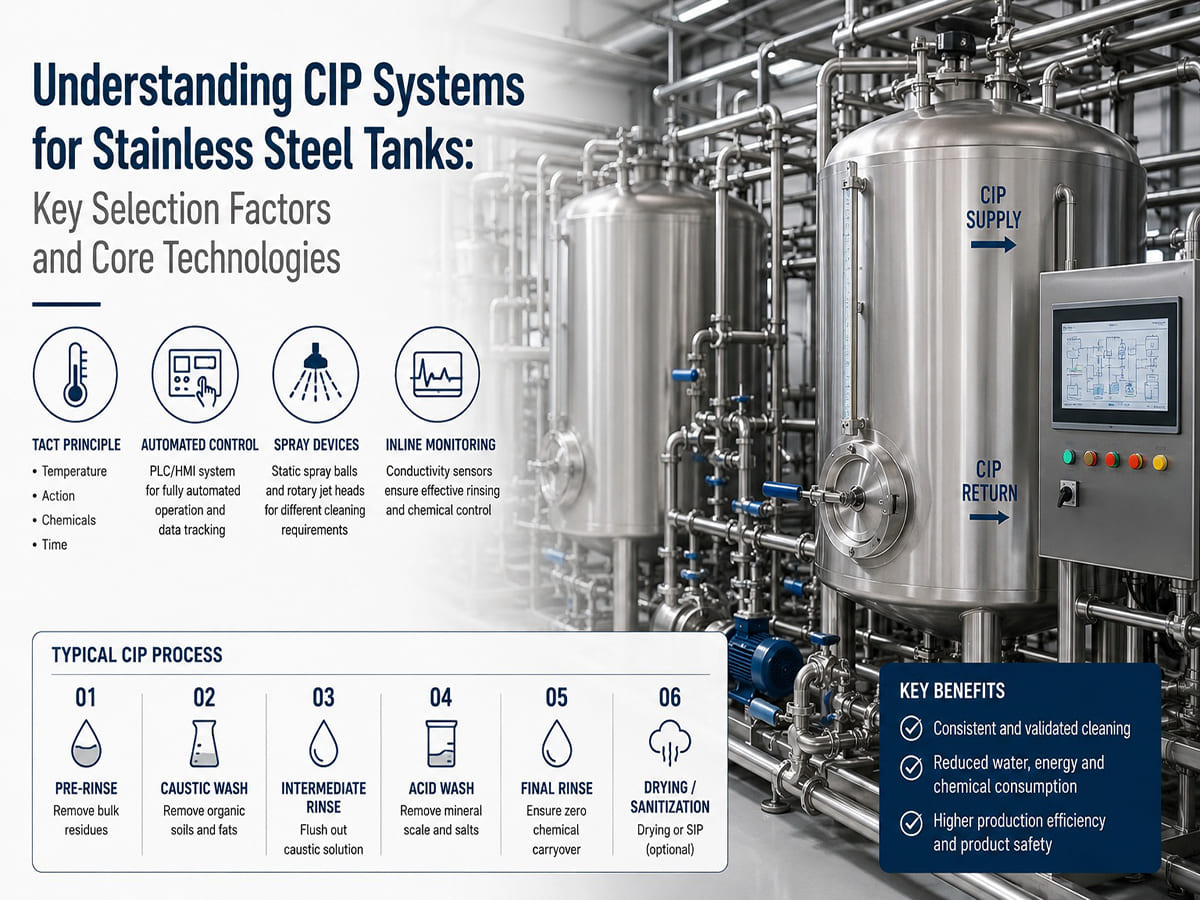

An effective CIP process relies on four fundamental factors, commonly known as the TACT principle:
Temperature – Thermal energy helps break down and remove organic residues.
Action – Mechanical force from spray devices and fluid flow physically removes deposits from tank surfaces.
Chemicals – Acid and alkaline cleaning solutions dissolve, break down or react with different types of residues.
Time – Sufficient contact time allows the chemical and mechanical cleaning actions to work effectively.
These four factors are interconnected. When one parameter is reduced, another may need to be adjusted to maintain the required cleaning performance.
For example, shortening a cleaning cycle may require stronger mechanical action or an appropriate adjustment of chemical concentration.
Modern CIP systems can integrate a Programmable Logic Controller (PLC) with an HMI control interface to automate the cleaning sequence.
The system can control and monitor key parameters such as:
Cleaning temperature
Flow rate
Pressure
Cleaning time
Chemical dosing
Conductivity
Automated control reduces manual operation and helps provide more consistent cleaning cycles, which is particularly valuable for production environments where repeatability and process records are important.
The cleaning performance inside a stainless steel tank is strongly influenced by the spray device.
Static spray balls provide a simple and reliable solution by distributing cleaning liquid across the internal tank surface. With no moving parts, they are suitable for relatively easy-to-clean applications.
Rotary jet heads use the cleaning fluid to drive the spray head and deliver targeted, high-impact jets across the tank walls. They can provide stronger mechanical cleaning action and are particularly useful where tanks contain sticky, viscous or difficult-to-remove residues.
Therefore, spray device selection should be based on the tank geometry, product characteristics and cleaning requirements rather than adopting a single configuration for every application.
Conductivity sensors installed in the CIP return line can help monitor the transition between water and cleaning solutions.
Because water, alkaline solutions and acid solutions have different conductivity characteristics, conductivity monitoring can be used to determine whether the cleaning solution has reached the required condition and whether rinsing has sufficiently removed residual chemicals.
This supports more accurate chemical management and can also help automate the recovery or diversion of cleaning solutions.
Temperature is an important component of CIP performance.
CIP systems can incorporate plate or shell-and-tube heat exchangers to heat water and cleaning solutions to the required temperature. Combined with automatic temperature control, the system can maintain stable cleaning conditions throughout the cycle.
For different products and residues, the appropriate cleaning temperature should be determined according to the actual process requirements and equipment specifications.
There is no single CIP configuration suitable for every production facility. The appropriate system depends on the number of tanks, production volume, cleaning frequency, available space and desired level of automation.
A single-tank configuration can be suitable for smaller production operations or applications with relatively simple cleaning requirements.
It offers a compact structure and lower initial equipment investment, while allowing cleaning solutions to be prepared and circulated through the process system.
For larger production lines, 2–4 or more CIP tanks can be configured for fresh water, recovered water, caustic and acid solutions.
This arrangement enables cleaning solutions to be recovered and reused where appropriate, helping reduce water, chemical and energy consumption during repeated cleaning cycles.
Mobile or skid-mounted units provide greater flexibility when multiple tanks or production stations need to share the same cleaning system.
They can be particularly useful where production layouts change frequently or where a dedicated CIP system is not required for every process area.
The CIP system itself must be designed with the same attention to hygiene as the stainless steel tanks it cleans.
For fluid-contact components, SUS304 or SUS316L stainless steel can be selected according to the application and media. Surface finishing, weld quality, piping configuration, valves and gaskets all influence cleanability and long-term reliability.
For demanding hygienic applications, smooth internal surfaces and properly designed welds help reduce areas where product residues can accumulate.
Gasket and seal materials should also be compatible with the cleaning temperature and chemical solutions used in the CIP cycle.
Cleaning performance depends not only on chemical concentration and temperature but also on fluid dynamics.
The CIP supply pump needs to provide sufficient flow and pressure for the selected spray device, while the return system must effectively remove cleaning liquid from the tank.
Proper hydraulic balance helps maintain effective spray coverage and prevents excessive liquid accumulation inside the vessel.
For this reason, tank size, spray device, supply pump, return pump and piping design should be considered as a complete system rather than as separate components.
A standard cleaning process for a stainless steel process tank may include several stages:
1. Pre-Rinse
Water is circulated to remove bulk product residues before chemical cleaning.
2. Caustic Wash
An alkaline solution is circulated to remove fats, proteins and other organic residues.
3. Intermediate Rinse
Water removes residual alkaline solution before the next cleaning stage.
4. Acid Wash
An acid solution can be used to remove mineral deposits, inorganic salts and other scale.
5. Final Rinse
Fresh or appropriately treated water is circulated to remove remaining cleaning chemicals.
6. Drying or Sanitization
Depending on the process, clean dry air or a separate sanitization process can be introduced before the next production cycle.
The exact concentration, temperature, flow rate and cleaning time should be established according to the product, equipment materials and specific cleaning validation requirements.
As production facilities focus increasingly on water consumption, chemical use and production efficiency, CIP systems are also becoming more intelligent.
Automated monitoring of temperature, flow, pressure and conductivity can provide operators with greater control over each cleaning cycle. More advanced systems can use process data to optimize cleaning duration and reduce unnecessary rinsing or chemical circulation.
The goal is not simply to clean the tank, but to achieve consistent cleaning performance with less water, energy, chemicals and downtime.
For stainless steel tank applications, CIP should be considered during the tank design stage rather than added as an afterthought. Tank geometry, internal surface finish, spray device position, outlets, piping and cleaning access all influence the final cleaning performance.
