Introduction

Shell and tube heat exchangers are among the most widely used heat transfer equipment in industrial facilities. Two of the most common configurations are the floating head heat exchanger and the fixed tube sheet heat exchanger.

Although both designs perform the same basic function, they differ significantly in terms of thermal expansion capability, maintenance accessibility, manufacturing cost, and application suitability.

Understanding these differences can help engineers and plant operators select the most cost-effective and reliable solution for their specific operating conditions.

What Is a Fixed Tube Sheet Heat Exchanger?

A fixed tube sheet heat exchanger has tube sheets permanently welded or fixed to the shell at both ends.

The tube bundle cannot be removed from the shell.

Advantages include:

• Simple construction

• Lower manufacturing cost

• Compact design

• Reduced weight

Because of its simplicity, the fixed tube sheet design is often selected for clean services and moderate operating conditions.

What Is a Floating Head Heat Exchanger?

A floating head heat exchanger has one fixed tube sheet and one floating tube sheet.

The floating end can move freely inside the shell, allowing thermal expansion between the shell and tube bundle.

Additionally, the tube bundle can be completely removed for maintenance and cleaning.

This design is commonly used in severe operating environments.

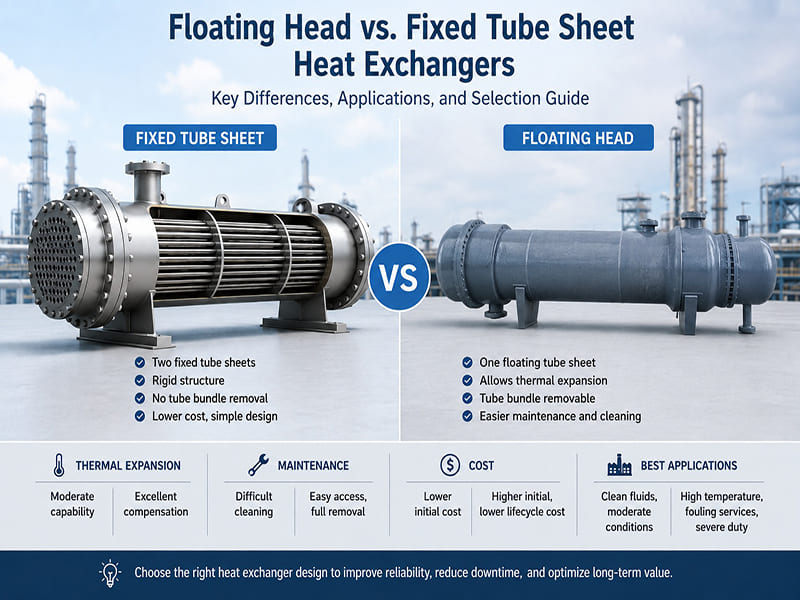

Structural Comparison

Fixed Tube Sheet Design

Characteristics include:

• Two fixed tube sheets

• Rigid structure

• No tube bundle removal

• Fewer components

Floating Head Design

Characteristics include:

• One movable tube sheet

• Expansion compensation capability

• Removable tube bundle

• More complex construction

Thermal Expansion Performance

Thermal expansion is often the most important factor when selecting a heat exchanger.

Fixed Tube Sheet

Large temperature differences can create thermal stress between the shell and tubes.

In severe applications, expansion joints may be required.

Floating Head

The floating tube sheet automatically compensates for thermal expansion.

This significantly reduces stress and improves equipment reliability.

Comparison

Maintenance and Cleaning Comparison

Fixed Tube Sheet Heat Exchanger

Challenges include:

• Tube bundle cannot be removed

• Shell-side cleaning is difficult

• Maintenance often takes longer

Floating Head Heat Exchanger

Benefits include:

• Full tube bundle removal

• Easy mechanical cleaning

• Improved inspection access

For fouling services, the floating head design offers significant advantages.

Cost Comparison

Initial Investment

Fixed tube sheet heat exchangers are generally less expensive.

Lifecycle Cost

Floating head heat exchangers often reduce:

• Maintenance costs

• Downtime expenses

• Repair frequency

For many industrial facilities, lower operating costs offset the higher initial purchase price.

Best Applications for Fixed Tube Sheet Heat Exchangers

Fixed tube sheet designs are typically used when:

• Fluids are relatively clean

• Temperature differences are moderate

• Budget is a primary concern

• Maintenance requirements are limited

Typical industries include:

• Food processing

• Water treatment

• HVAC systems

• Light chemical services

Best Applications for Floating Head Heat Exchangers

Floating head heat exchangers are preferred when:

• Significant thermal expansion exists

• Fouling fluids are present

• Frequent maintenance is expected

• High reliability is required

Common industries include:

• Oil refineries

• Petrochemical plants

• Power generation

• Heavy chemical processing

Selection Guide

Choose a Fixed Tube Sheet Heat Exchanger if:

✔ Lower capital cost is important

✔ Process fluids are clean

✔ Thermal expansion is minimal

✔ Maintenance access is not critical

Choose a Floating Head Heat Exchanger if:

✔ High temperatures are involved

✔ Thermal expansion is significant

✔ Fouling is expected

✔ Easy maintenance is required

✔ Long-term reliability is a priority

Conclusion

Both floating head and fixed tube sheet heat exchangers offer distinct advantages. Fixed tube sheet designs provide a cost-effective solution for clean services and moderate operating conditions, while floating head heat exchangers excel in demanding applications requiring thermal flexibility and easy maintenance.

By carefully evaluating process temperatures, fluid characteristics, maintenance requirements, and budget considerations, engineers can select the heat exchanger design that delivers the best long-term value.
