Scaling up vinegar production is not simply a matter of making a fermentation tank larger. As production moves from laboratory testing to commercial manufacturing, tank volume, heat transfer, aeration, process control, material selection, and cleaning requirements all need to be reconsidered.
A fermentation process that works well in a 50 L laboratory fermenter may behave differently at 5,000 L or 100,000 L. For this reason, successful scale-up requires the fermentation tank and its supporting systems to be designed around the production process.
Laboratory-scale fermentation is usually the starting point for developing a new vinegar product or optimizing an existing process.
At this stage, producers can evaluate:
Raw material compatibility
Fermentation conditions
Target acidity
Temperature requirements
Aeration requirements
Fermentation time
Foam formation
Product quality
Pretank's vinegar equipment covers laboratory-scale applications, with vinegar fermentation equipment available from 50 L and above, providing a practical starting point for process development before moving to larger production equipment.
However, laboratory results should not simply be transferred directly to a larger tank. The engineering conditions change significantly as tank volume increases.
A larger tank changes the relationship between the liquid volume, tank surface area, cooling system and aeration system.
For example, a laboratory fermenter can remove heat relatively easily because of its smaller volume. In a large industrial tank, fermentation generates considerably more heat, while the surface area available for heat transfer does not increase at the same rate as the liquid volume.
This makes temperature control an important consideration during scale-up.
The same principle applies to aeration. Increasing tank capacity requires the aeration system to provide appropriate oxygen distribution throughout the fermentation liquid rather than simply increasing the air supply proportionally.
The first step is determining the required production capacity.
A plant may need different tank sizes depending on:
Daily or annual production
Batch size
Fermentation time
Target vinegar acidity
Number of products
Future production expansion
Pretank provides vinegar fermentation equipment from laboratory scale to industrial production, with tank capacities that can be customized according to the customer's process.
For large-scale plants, capacity planning should also consider the relationship between fermentation tanks, storage tanks, blending tanks and filling equipment.
A larger fermenter is useful only when the downstream equipment can handle the additional production.
Temperature is one of the key parameters that must remain under control during vinegar fermentation.
As tank volume increases, fermentation can generate significant heat. Industrial fermenters therefore require an appropriate cooling system to remove heat and maintain the required operating temperature.
Pretank vinegar fermenters can be equipped with internal cooling coils using glycol water or cold water. The cooling configuration can be designed according to tank size and process requirements.
When scaling up, engineers need to consider:
Cooling surface area
Cooling medium
Heat generation
Temperature sensor location
Cooling capacity
Control response
A properly designed cooling system helps maintain a more stable fermentation environment in larger tanks.
Acetic acid bacteria require oxygen during vinegar fermentation, making aeration another critical consideration.
A small laboratory vessel may achieve sufficient oxygen transfer with a relatively simple aeration arrangement. An industrial tank, however, needs to distribute air effectively throughout a much larger volume of liquid.
The design of the aeration system should therefore consider:
Tank geometry
Liquid volume
Air distribution
Pump circulation
Fermentation conditions
Required production rate
Pretank industrial vinegar fermenters can be configured with aeration systems and stainless steel pumps to support different production requirements.
As production becomes larger, manual control becomes increasingly difficult.
A laboratory operator can closely monitor a small fermentation vessel. Monitoring a 50,000 L or 100,000 L industrial system requires sensors and a suitable control system.
Depending on the application, industrial vinegar fermentation equipment can incorporate:
Temperature sensors
Liquid-level sensors
Alcohol measurement
Pumps
Aeration control
Defoaming equipment
PLC process control
The purpose is not simply to increase automation. It is to make important process parameters easier to monitor and maintain consistently.
Material selection also needs to be considered during scale-up.
Vinegar is an acidic product, so the tank material should be selected according to the actual process conditions and customer requirements.
Pretank's vinegar equipment can be manufactured using stainless steel options including:
AISI 304
AISI 316L
AISI 321
AISI 316Ti
The appropriate material depends on factors such as vinegar composition, acidity, operating conditions and the customer's production requirements.
For food-grade applications, the internal surface finish and weld quality are also important for hygiene and cleaning.
Foam behavior can change when moving from laboratory-scale fermentation to industrial production.
A larger fermentation vessel may require a dedicated defoaming system to prevent excessive foam accumulation and maintain stable operation.
Tank geometry also needs to be considered. The shape, height-to-diameter ratio, internal connections and outlet configuration can affect aeration, circulation, cleaning and drainage.
This is why industrial fermentation tanks should be engineered as complete systems rather than simply enlarged versions of laboratory equipment.
A larger fermentation system also means more internal surfaces, pipelines and connections that need to be cleaned.
A commercial vinegar fermenter should therefore be designed with cleaning in mind from the beginning.
Important considerations include:
Smooth internal surfaces
Properly finished welds
Sanitary valves
Effective drainage
CIP cleaning devices
Accessible manholes
Appropriate pipeline layout
CIP equipment can be integrated with the fermentation system to simplify cleaning between production cycles.

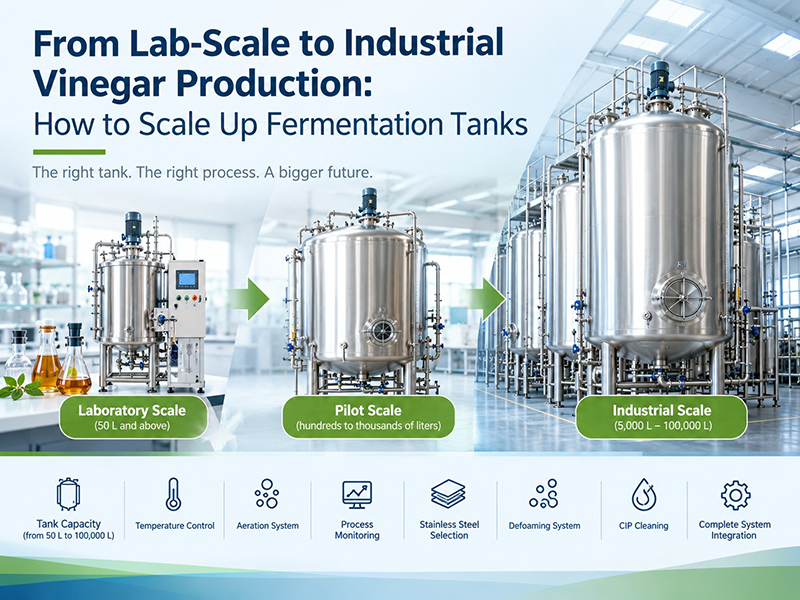

A typical scale-up strategy can be divided into several stages:
Laboratory Testing → Pilot Production → Commercial Fermentation → Industrial Production
At each stage, the producer can evaluate whether the fermentation conditions remain stable before increasing capacity further.
For example:
Focus on developing the recipe and understanding fermentation behavior.
Verify temperature control, aeration, fermentation time and product consistency at a larger volume.
Optimize tank capacity, operating efficiency, cleaning and production scheduling.
Integrate multiple fermentation tanks with storage, blending, CIP, pipelines and automated process control.
This staged approach can reduce the risk of directly transferring a laboratory process into a much larger production environment.
The fermentation tank should not be considered independently from the rest of the plant.
As production increases, the complete system may need to expand together:
Raw Material Storage → Alcohol Fermentation → Acetic Acid Fermentation → Storage → Blending → Finished Vinegar Storage → Filling
Supporting systems such as cooling, aeration, pumps, CIP and PLC control also need to match the increased production capacity.
This is particularly important when a producer plans to expand production in the future. Leaving sufficient space and connection points for additional tanks or equipment can make later expansion easier.
Scaling up vinegar fermentation requires more than increasing tank volume. Temperature transfer, aeration, process monitoring, material selection, defoaming, cleaning and downstream capacity all need to be considered together.
A well-designed scale-up strategy allows producers to move from laboratory testing to industrial production while maintaining better control over the fermentation process.
Pretank provides stainless steel vinegar fermentation equipment from laboratory-scale systems to industrial tanks, with customized configurations for different capacities, raw materials and production processes.
From pilot testing to large-scale vinegar production, contact Pretank to discuss the right fermentation tank and complete equipment solution for your next production stage.
