In industrial applications such as petrochemical processing, power generation, and chemical manufacturing, floating head heat exchangers are widely used for their ability to handle thermal expansion and facilitate maintenance. Among the key steps in designing or selecting such equipment, calculating the required heat transfer area is one of the most critical.
A properly calculated heat transfer area ensures that the exchanger meets process requirements while maintaining efficiency, reliability, and cost-effectiveness.

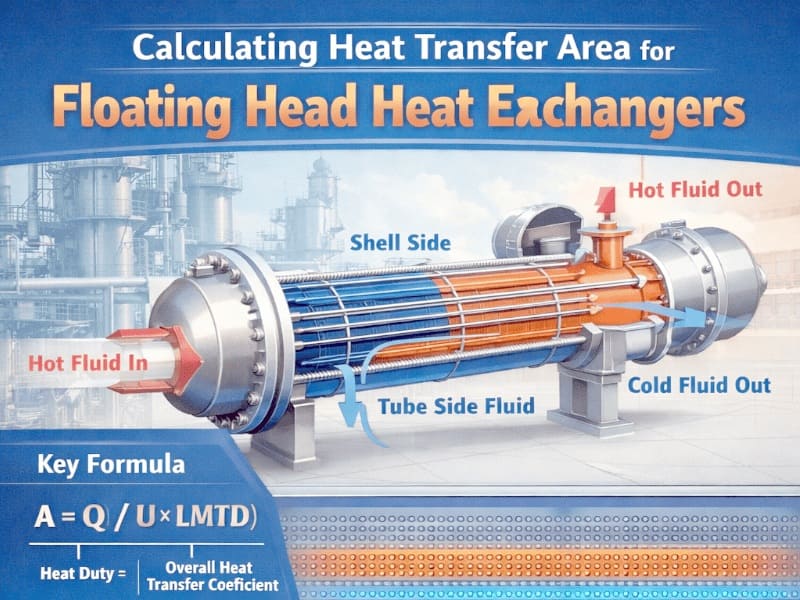

The heat transfer area refers to the effective surface through which heat is exchanged between the tube-side and shell-side fluids. In floating head heat exchangers, this area is primarily determined by the outer surface area of the tubes within the bundle.
An accurate calculation is essential to:
Achieve the desired outlet temperatures
Avoid undersizing or oversizing equipment
Optimize energy efficiency and operating costs
The heat transfer area is typically calculated using the fundamental heat transfer equation:
Q = U × A × ΔT
Where:
Q = Heat duty (W or kcal/h)
U = Overall heat transfer coefficient (W/m²·K)
A = Heat transfer area (m²)
ΔT = Effective temperature difference (usually LMTD)
Rearranging the equation:
A = Q / (U × ΔT)
This equation forms the foundation of heat exchanger sizing.
Heat duty can be calculated as:
Q = m × Cp × ΔT
Where:
m = Mass flow rate
Cp = Specific heat capacity
ΔT = Fluid temperature change
For counterflow operation:
LMTD = (ΔT1 − ΔT2) / ln(ΔT1 / ΔT2)
Where:
ΔT1 = Temperature difference at one end
ΔT2 = Temperature difference at the other end
LMTD reflects the actual temperature driving force across the exchanger.
The overall heat transfer coefficient depends on:
Fluid properties
Flow regime
Tube material
Fouling resistance
Typical ranges:
Water–water: 500–1500 W/m²·K
Oil–water: 100–500 W/m²·K
Using the main formula:
A = Q / (U × LMTD)
This gives the total required surface area for heat transfer.
The calculated area is translated into actual design:
A = π × D × L × N
Where:
D = Tube outer diameter
L = Tube length
N = Number of tubes
This step ensures the design is practical and manufacturable.
Floating head designs allow axial movement of the tube bundle, reducing thermal stress and enabling operation under higher temperature differences.
Fouling reduces heat transfer efficiency over time. Engineers typically:
Add design margins
Include fouling factors in U
Multi-pass configurations:
Increase turbulence
Improve heat transfer
Affect pressure drop and LMTD correction
Include a 10–25% design margin
Use real operating data when possible
Balance heat transfer with pressure drop
Plan for maintenance and cleaning
