Fermentation temperature is one of the most critical parameters in winemaking. As yeast converts sugars into alcohol, heat is generated inside the tank. If this heat is not effectively removed, temperature fluctuations can affect fermentation performance, aroma development, color extraction, and the consistency of the finished wine.
For modern wineries, jacketed stainless steel wine tanks provide a practical and controllable solution. By combining an efficient cooling jacket with temperature monitoring, wineries can remove fermentation heat and maintain the desired process temperature more accurately.
Pretank's wine tank range incorporates laser-welded cooling and heating jackets, with temperature controlled through a therm probe. The jacket configuration can also be customized according to the tank and production requirements.
Fermentation is an active biological process, and its temperature can change continuously as yeast activity increases or decreases.
Uncontrolled temperature rises may lead to:
Excessive or unstable yeast activity
Changes in fermentation rate
Loss of desirable aromatic characteristics
Inconsistent color and flavor development
Greater difficulty reproducing the same wine profile from batch to batch
Temperature control therefore needs to be considered as part of the tank design rather than simply as an external cooling function.
A properly designed jacketed tank allows heat to be removed directly through the tank wall, giving winemakers a more stable thermal environment throughout fermentation.

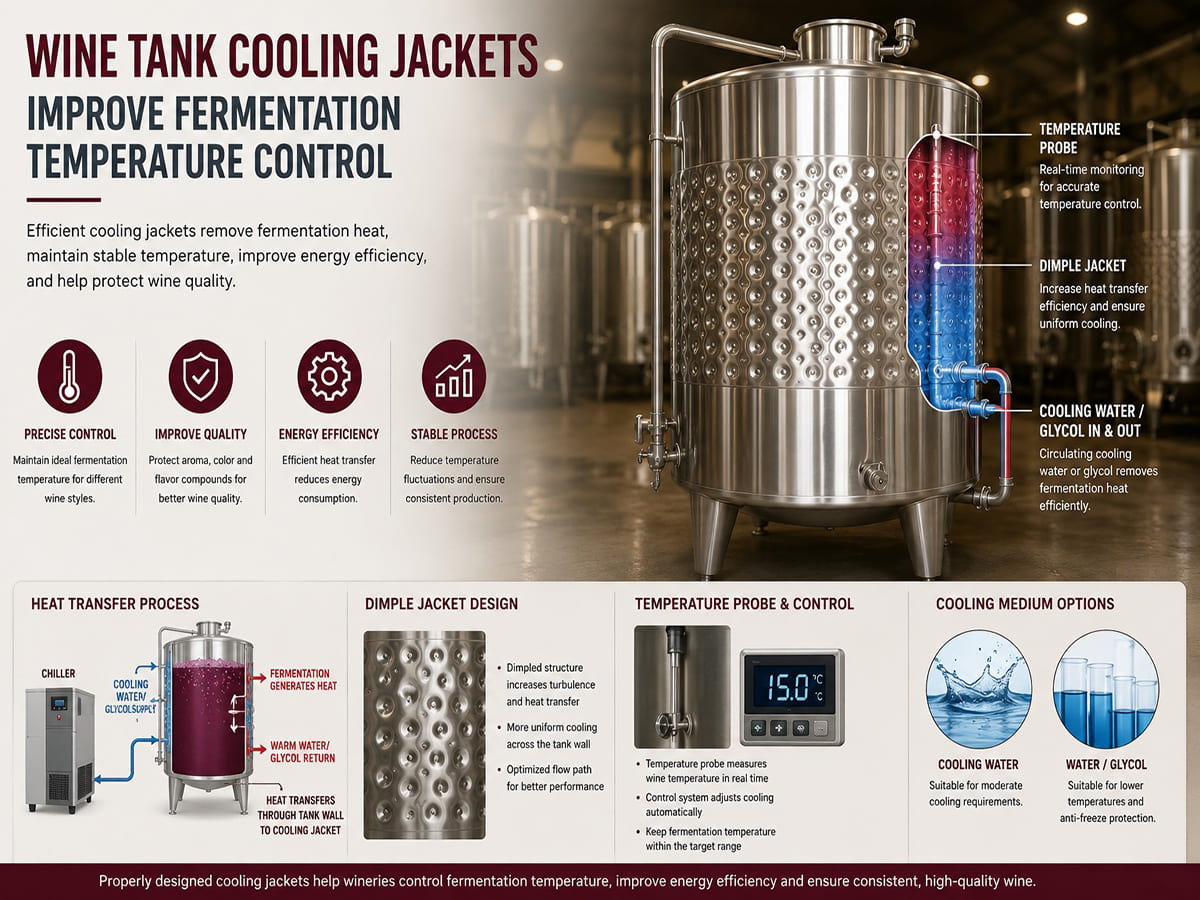

A cooling jacket is installed around the external wall of the stainless steel tank. Cooling water or a water-glycol mixture circulates through the jacket while remaining completely separated from the wine.
The heat-transfer process can be summarized as:
Fermentation Heat → Stainless Steel Tank Wall → Cooling Jacket → Cooling Medium → Chiller
As fermentation generates heat, thermal energy passes through the stainless steel wall into the circulating cooling medium. The cooled medium then returns to the refrigeration system before being circulated through the jacket again.
This indirect heat-transfer method provides effective temperature management while maintaining the sanitary separation between the wine and the cooling circuit.
The structure of the cooling jacket has an important influence on thermal performance.
A dimple jacket uses formed channels across the jacket surface to guide the cooling medium through the tank wall. The resulting flow pattern can improve turbulence and heat transfer compared with a simple stagnant jacket space.
For wine tanks, an appropriately designed dimple jacket can provide:
Efficient heat transfer
More uniform cooling
Controlled cooling-medium circulation
Compact construction
Reliable long-term operation
Pretank offers wine tanks with different cooling-jacket configurations, including dimple/corrugated jacket options on selected models. The jacket area can be customized according to temperature-control requirements.
For a winery equipment manufacturer, the fabrication quality of the jacket is as important as its design.
Pretank states that its cooling and heating jackets are laser welded, providing controlled flow channels and reliable heat-transfer conditions.
A properly fabricated jacket needs to withstand repeated cooling and heating cycles as well as continuous circulation of the cooling medium. Consistent welding and fabrication are therefore important for long-term reliability and minimizing the risk of leakage.
Cooling equipment alone cannot provide precise temperature control without accurate measurement.
A temperature probe monitors the actual temperature of the wine and provides feedback to the control system. When the measured temperature deviates from the target value, the cooling or heating system can respond accordingly.
The basic control principle is:
Temperature Measurement → Control Signal → Cooling/Heating → Temperature Adjustment
Pretank specifically notes that its jacketed wine tanks use a therm probe to help control temperature finely. Selected tank configurations also list thermometers or temperature probes as standard or optional accessories.
This real-time monitoring is particularly valuable during active fermentation, when heat generation can change considerably over a relatively short period.
The choice of cooling medium depends on the winery's target temperature and cooling-system design.
Cooling water can be suitable for applications where the required cooling temperature is relatively moderate.
For lower-temperature applications, water-glycol is commonly used because it can circulate at temperatures below the normal freezing point of water. Pretank's commercial fermentation tank configurations, for example, include dedicated glycol water inlet and outlet connections.
A typical temperature-control system may include:
Chiller
Glycol or chilled-water circuit
Circulation pump
Supply and return pipelines
Tank cooling jacket
Temperature probe
Temperature control system
The final configuration should be selected according to tank volume, target fermentation temperature, ambient conditions, cooling capacity, and the specific winemaking process.
Temperature control is also closely related to energy consumption.
A well-designed jacket can transfer heat efficiently, reducing the amount of time the refrigeration system needs to operate. For wineries with multiple fermentation and storage tanks, optimizing heat-transfer performance can become particularly important because cooling equipment may operate across many tanks simultaneously.
Tank insulation can provide an additional thermal barrier, reducing unwanted heat exchange with the surrounding environment. Pretank also offers insulated stainless steel wine storage tanks for applications where maintaining a stable low temperature is important.
The objective is not simply to maximize cooling capacity, but to achieve an appropriate balance between:
Heat Transfer + Temperature Stability + Cooling Capacity + Energy Consumption
Different wine styles can require different temperature-management strategies.
White wine fermentation generally benefits from controlled fermentation conditions, where temperature management helps preserve delicate aromatic characteristics.
A jacketed tank allows fermentation heat to be continuously removed and the desired temperature to be maintained more consistently.
Pretank's jacketed wine storage tank is specifically described as suitable for white wine fermentation and storage of both red and white wines.
Red wine fermentation can generate significant heat, while temperature also influences maceration and extraction.
A jacketed fermentation tank provides the ability to remove excess heat and maintain the selected process temperature. Where both cooling and heating are configured, the tank can provide greater flexibility for different production stages.
The key is not simply achieving a low temperature, but maintaining a stable and repeatable temperature appropriate to the wine and process.
Not every winery has the same tank size, production volume, or temperature-control requirements.
Factors that should be considered when designing the jacket include:
Tank capacity
Tank diameter and height
Required cooling area
Target fermentation temperature
Cooling-medium temperature
Flow rate
Number of jacket zones
Insulation requirements
Temperature probe position
Pretank's wine tank solutions support customized configurations according to customer requirements and production processes. Its product range covers fermentation tanks, storage tanks, forkable tanks, variable capacity tanks, and blending tanks, allowing the temperature-control system to be matched to different winery applications.
Pretank has been designing and fabricating stainless steel wine tanks since 1971 and provides customized solutions for wineries worldwide. The company's wine tank range includes fermentation, storage, variable capacity, blending, and other specialized tank configurations.
Its wine tanks can be configured with:
Laser-welded cooling/heating jackets
Dimple or corrugated jacket options
Temperature probes
Glycol water connections
Insulation
Sanitary fittings
Customized tank dimensions and accessories
Pretank also carries out leakage-proof testing and inspection before delivery, supporting reliable equipment performance after installation.
Effective fermentation temperature control depends on more than simply adding a cooling system. Jacket design, heat-transfer efficiency, cooling-medium circulation, temperature measurement, and tank configuration all work together to determine the performance of a temperature-controlled wine tank.
A properly designed laser-welded cooling jacket, combined with a suitable water or glycol circuit and accurate temperature probe, gives wineries greater control over fermentation heat, helping maintain wine quality and production consistency.
Pretank provides customized stainless steel wine tanks engineered for efficient heat transfer and precise temperature-controlled winemaking.
