Pump-over wine fermentation tank with filtering grid
Prettech is the leader of wine fermentation tank producer in China, with 43 years of history we have established stable and honest customer group in China and overseas, such as Changyu, Hennessy, Unipektin.
Tank finish can be 2B, satin, flower patterned and mirror, roughness below 0.6um, supporting types can be legs, skirt and movable forklift pocket.
Scrapper pan is mounted on the conical bottom of tank, it's used to move the rape to the door in order to discharge the rape, it consists of upside-down cone, basement, motor& gear box, mixing ring, framework and O-ring. It has the perfect performances of easy operation, compact structure, complete scrapped, nice sealing and stable work.
Our tank is of high quality but prices are much competitive, it's a perfect new sourcing for winery, trader and project company.
Wine fermentation tank basic component
Top round manhole
Breathing valve

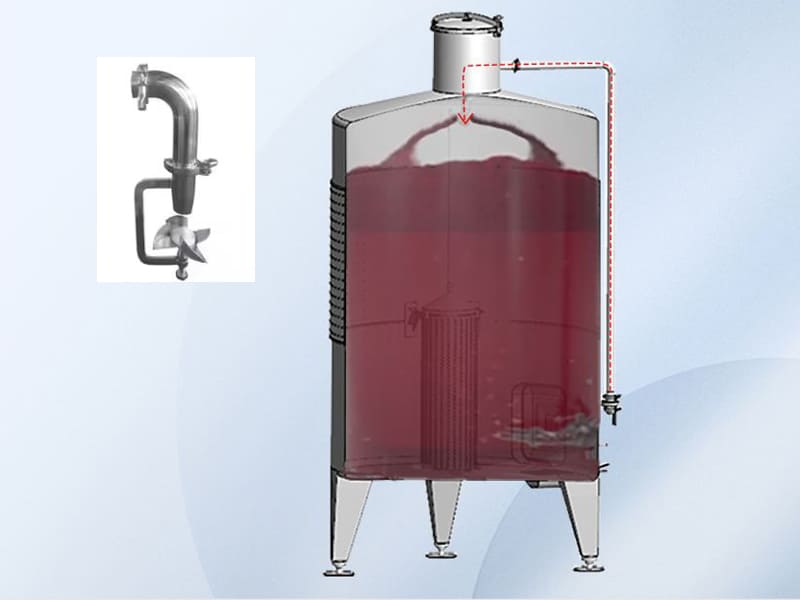

System for pouring over the hat layer
Dimple jacket
Bottom oval manhole
Sampling valve
Thermometer/ probe
Power control panel: cycle/discharge/temperature
Conical bottom
Supporting legs
Inlet/ Outlet/drainage
Scrapper pan
Hydraumatic slagging door
Pressure transmitter
Motor and gear box
Level indicator
Technical Parameters of Pump-over wine fermentation tank with filtering grid:
Code | Capacity: hl | Diameter: mm | Shell height: mm | Total height: mm |
WFT-A1 | 10 | 1100 | 1100 | 2550 |
WFT-A2 | 20 | 1200 | 1800 | 3250 |
WFT-A3 | 30 | 1500 | 1800 | 3250 |
WFT-A4 | 40 | 1600 | 2000 | 3450 |
WFT-A5 | 50 | 1600 | 2500 | 3950 |
WFT-A10 | 100 | 1800 | 4000 | 5450 |
WFT-A15 | 150 | 2000 | 4880 | 5950 |
WFT-A20 | 200 | 2500 | 4100 | 5200 |
WFT-A30 | 300 | 2800 | 4900 | 6200 |
WFT-A40 | 400 | 2800 | 6500 | 7700 |
WFT-A50 | 500 | 3000 | 7100 |
|
WFT-A60 | 600 | 3000 | 8500 |
|
WFT-A70 | 700 | 3200 | 8750 |
|
WFT-A80 | 800 | 3400 | 8820 |
|
WFT-A90 | 900 | 3800 | 7940 |
|
WFT-A100 | 1,000 | 3850 | 8380 |
|
WFT-A150 | 1,500 | 4000 | 11950 |
|
WFT-A200 | 2,000 | 4800 | 11060 |
|
WFT-A250 | 2,500 | 5200 | 11780 |
|
WFT-A300 | 3,000 | 5600 | 12190 |
|
