Global warming and the hot climate in some areas force the wine producers to spend majority of their energy cost on controlling refrigeration to guarantee their wine quality, with increasing price for energy, how to reduce energy cost while keep wine quality is a new subject to all wineries, wine tanks insulation system is the best choice.

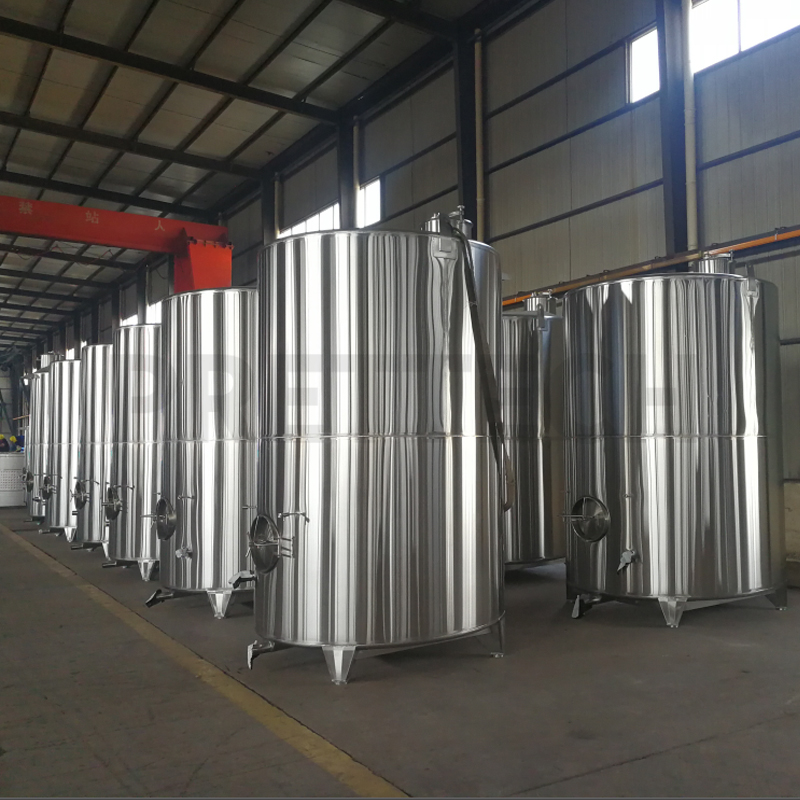

Stainless steel wine insulation storage tanks focus on temperature control and optimal insulation, this tank ensures the preservation and quality of your valuable wine collection.
WST-DW
Pretank
500L - 100,000L, volume can be customized
| Product Description
Insulated tanks play big roles in process of must mucus elimination before fermentation, wine stabilization after fermentation, both of the two processes of making wine request to be finished within a short time and quickly at a lower temperature, particularly in during wine stabilization, short cooling period but keeping wine at a low temperature for a while are very important to enable the formation of tartaric acid crystals.
Pretank stainless steel insulation tank can carry these processes out successfully, while also saving energy and easily maintaining the desired temperature.
| Product Configuration
Cylindrical Shell
Slope bottom
Stainless steel cladding 2mm
Top round manhole
Levelling indicator
Sample valve
Lifting lugs x2
4 legs with adjustable feet and levelling tubes
Conical top
PU foam 70-100mm
Rectangular manhole at side
Breathing valve
Drainage outlet
Ladder rack x1
| Product Paramenter
| Structure | Conical top with cylindrical shell, sloped flat bottom and double wall |
| Material | SUS304 |
| Jacket type | Cooling jacket |
| Insulation | PU/Rock wool |
| Surface finish | 2B/oil brushed/Internal welds to be ground,pickled&passivated |
| Accessories | Manhole, cooling jacket, sampler, inlet/outlet, drainage, lifting lug, ladder rack, thermometer, liquid leveling |
| OEM/ODM | Can be customized according to customers’ requirements and productions process |
| Warranty time | 2 years |
| Type | Capacity(L) | Shell dimension(mm) | Total height H(mm) | Legs（N） | Cooling area(m 2) |
| WST-DW | 1000 | Φ920*1500 | 2180 | 3 | 1.4 |
| WST-DW | 2000 | Φ1270*1610 | 2600 | 3 | 2.2 |
| WST-DW | 3000 | Φ1500*1830 | 3000 | 4 | 3 |
| WST-DW | 4000 | Φ1600*2000 | 3250 | 4 | 4 |
| WST-DW | 5000 | Φ1600*2440 | 3650 | 4 | 5 |
| WST-DW | 6000 | Φ1800*2440 | 3500 | 4 | 5.5 |
| WST-DW | 8000 | Φ1820*3050 | 4650 | 4 | 7 |
| WST-DW | 10000 | Φ1900*3600 | 4650 | 4 | 8.5 |
| WST-DW | 12000 | Φ1900*4270 | 5750 | 4 | 10 |
| WST-DW | 15000 | Φ2000*4880 | 5950 | 4 | 12 |
| WST-DW | 20000 | Φ2300*4880 | 6100 | 4 | 14 |
| WST-DW | 25000 | Φ2600*4880 | 6050 | 4 | 15 |
We provide ODM&OEM Services，contact us with admin@prettech.cn
| Product Features
All our tanks are made of high quality stainless steel (AISI 304 and 316L).
Welds to be ground,pickled&passivated
High-quality accessories
 | Designed with dimple jacket surrounding single layer storage tank to keep the temperature inside the tank always at an expected level, outside the jacket we wrap a 70-100mm thick layer of polyurethane foam, which has great properties of thermal insulation,prevent moisture and water, has low density and is lightweight. |
| Our workers will weld 0.7-2mm thick of stainless steel plate as cladding through 100% TIG, all of these insulation works are done ex plant by ourself, clients no need to spend extra time to outsource insulation |
| The exterior of insulation tank with brushed finish, complemented by a polished interior, with welds carefully grounded and pickled to deliver an excellent appearance. |
| Side agitator is optional to mix the liquid before filling.If add cooling jacket these insulation storage tanks can serve as buffer tanks. |

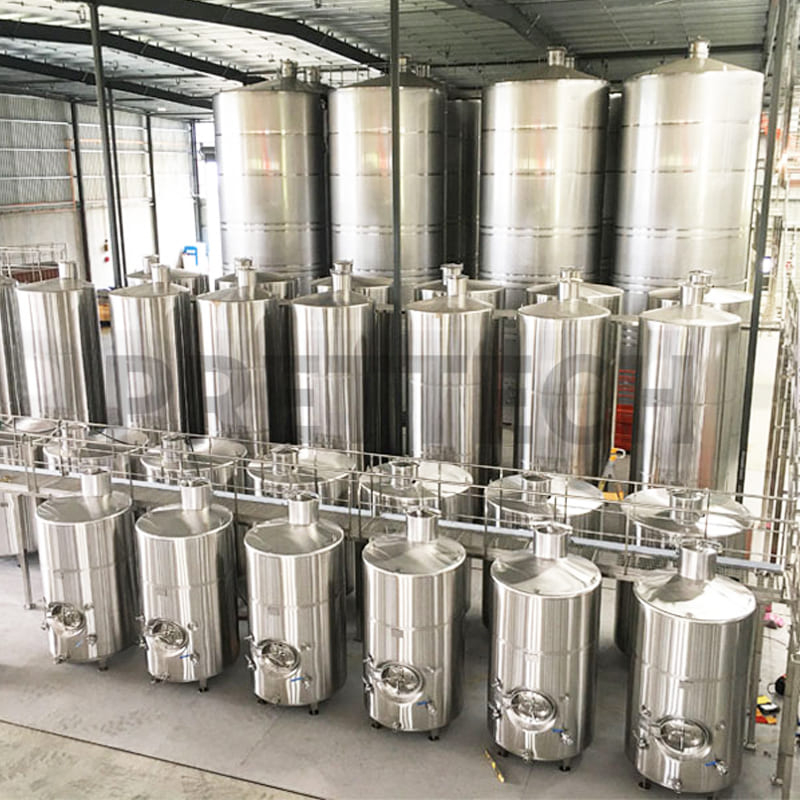

| Cooperation Project
Every year we supply a great deal of insulated wine tanks to wineries in varied countries of the world, the clients are pretty happy with our design, fabrication and quality, said saving them working time and energy cost, they are introducing our insulation tanks to more wine producers.
