WST-DW
Pretank
500L to 100,000L, can be customized
| Product Description

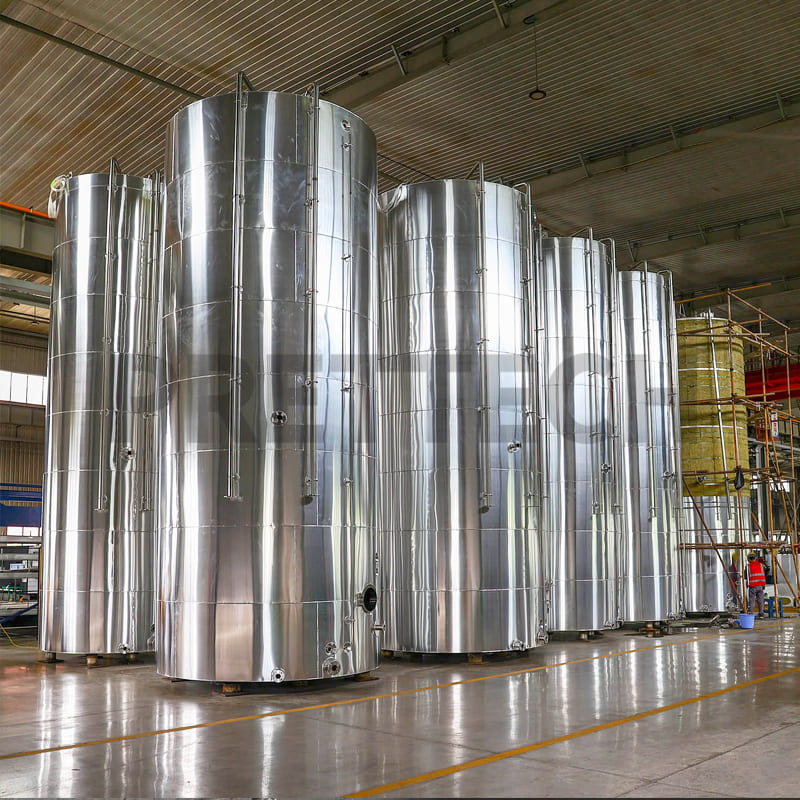

Pretank's riveted double wall wine insulation tank is more economical than welded wine insulation tank. We specializes in crafting insulation storage tanks ranging from 500L to 100,000L.Crafted from high-quality materials, choose between SUS304 or SUS316L for durability and performance tailored to your unique needs.
Global warming and high temperatures in some regions compel wine producers to allocate a significant portion of their energy costs to refrigeration to maintain wine quality. With rising energy prices, finding ways to reduce energy costs while preserving wine quality has become a pressing challenge for wineries. An effective solution is adopting wine insulation tank.
Insulated tanks are essential in the processes of must clarification before fermentation and wine stabilization after fermentation. Both stages require rapid processing at low temperatures. Specifically, during wine stabilization, it is crucial to achieve quick cooling and maintain the wine at a low temperature for a period, facilitating the formation of tartaric acid crystals.
Pretank stainless steel insulation tank can carry these processes out successfully, while also saving energy and easily maintaining the desired temperature.
| Basic Configuration
Cylindrical Shell
Conical top
Conical or slop flat bottom
4 legs with adjustable feet and levelling tubes
Manhole, on the top or at side
Levelling indicator
Fire-proof Breathing valve
Sampler
Drainage outlet
CIP arm and spray ball
Lifting lugs & Ladder rack
Jacket, Agitator, Insulation can be optional
| Product Paramenter
| Structure | Conical top with cylindrical shell, sloped flat bottom and double wall |
| Material | SUS304 or SUS316 |
| Jacket type | Cooling jacket |
| Insulation | PU/Rock wool |
| Surface finish | 2B/oil brushed/Internal welds to be ground,pickled&passivated |
| Accessories | Manhole, cooling jacket, sampler, inlet/outlet, drainage, lifting lug, ladder rack, thermometer, liquid leveling |
| OEM/ODM | Can be customized according to customers’ requirements and productions process |
| Warranty time | 2 years |
| Type | Capacity(L) | Shell dimension(mm) | Total height H(mm) | Legs（N） | Cooling area(m2) |
| WST-DW | 1000 | Φ920*1500 | 2180 | 3 | 1.4 |
| WST-DW | 2000 | Φ1270*1610 | 2600 | 3 | 2.2 |
| WST-DW | 3000 | Φ1500*1830 | 3000 | 4 | 3 |
| WST-DW | 4000 | Φ1600*2000 | 3250 | 4 | 4 |
| WST-DW | 5000 | Φ1600*2440 | 3650 | 4 | 5 |
| WST-DW | 6000 | Φ1800*2440 | 3500 | 4 | 5.5 |
| WST-DW | 8000 | Φ1820*3050 | 4650 | 4 | 7 |
| WST-DW | 10000 | Φ1900*3600 | 4650 | 4 | 8.5 |
| WST-DW | 12000 | Φ1900*4270 | 5750 | 4 | 10 |
| WST-DW | 15000 | Φ2000*4880 | 5950 | 4 | 12 |
| WST-DW | 20000 | Φ2300*4880 | 6100 | 4 | 14 |
| WST-DW | 25000 | Φ2600*4880 | 6050 | 4 | 15 |
Pretank provide one shop solutions for your winery equipment and usage.
Contact us with admin@prettech.cn
| Product Details
PU foam
Stainless steel/ aluminum cladding and 70-100mm PU foam have better effect than insulation coatings.PU foam is one of the best choices of insulation material. It offers great thermal insulation, is resistant to moisture and water.
Side Agitator&Cooling jacket
Side agitator is optional to mix the liquid before filling. If add cooling jacket these insulation storage tanks serve as versatile buffers, accommodating not only wine but also other sanitary liquids such as water, spirits, juice, oil, and tea.
Riveting TIG
Our workers use riveting tig to weld stainless steel or aluminum cladding plates. All insulation work is completed in-house at our facility, eliminating the need for clients to spend additional time outsourcing insulation services.Pretank provide one shop solutions for your winery equipment and usage.
Custom Legs
In addition to being supported by legs, our tanks can be mounted on a concrete plinth, providing a robust solution for larger volumes.
| Customer References
We deliver a large number of insulated wine tanks to wineries.Our clients are highly satisfied with our designs, craftsmanship, and product quality.Many clients praise our tanks for helping them save labor time and energy costs.Our clients also our insulated tanks to other wineries.
