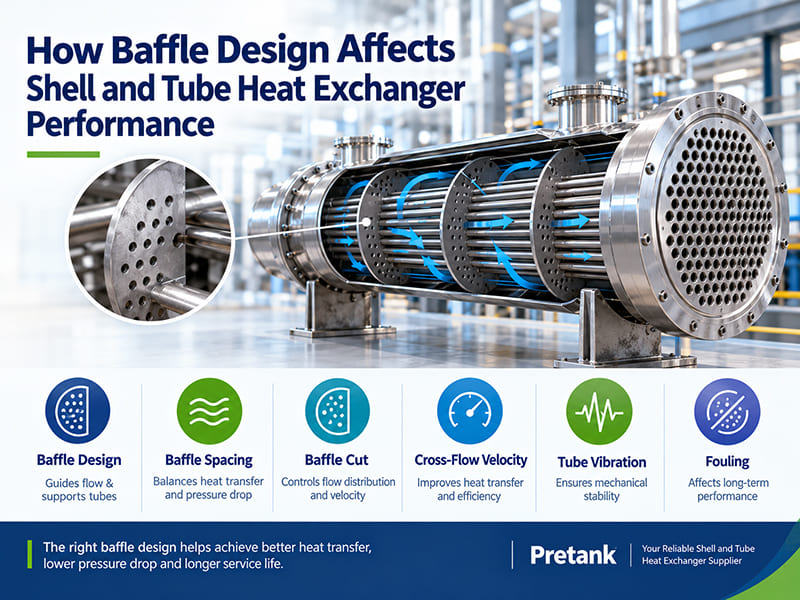

Baffles are important components of shell and tube heat exchangers. They support the tube bundle and guide shell-side fluid across the tubes, influencing heat transfer, pressure drop, flow distribution, and mechanical stability.
However, baffle design involves more than simply directing fluid through the shell. Baffle spacing, baffle cut, shell-side velocity, and tube support conditions all affect how the heat exchanger performs under operating conditions.
For industrial users, an effective baffle arrangement should provide sufficient heat transfer without creating excessive pressure drop, unnecessary pumping costs, or increased tube vibration. Understanding these design factors helps engineers and equipment buyers evaluate heat exchanger performance beyond the rated heat transfer capacity.
Baffles are installed inside the shell of a shell and tube heat exchanger. Depending on their design and arrangement, they perform two primary functions.
First, they guide shell-side fluid. Instead of allowing the fluid to flow directly along the shell with limited interaction with the tube bundle, baffles direct it across the tubes. This cross-flow can increase turbulence and improve heat transfer.
Second, they support the tubes. Baffles help maintain tube spacing and provide intermediate support along the tube bundle. Appropriate support is important for controlling tube movement and reducing the risk of vibration-related damage.
Baffles therefore affect both thermal performance and mechanical reliability. Their configuration should be selected according to the process fluid, operating conditions, heat transfer requirements, and allowable pressure drop.
Heat transfer depends partly on how effectively the shell-side fluid moves across the tube surfaces.
When baffles direct the fluid through the tube bundle, they can increase cross-flow and turbulence. This improves fluid mixing near the tube surfaces and can increase the shell-side heat transfer coefficient.
Without an appropriate flow-guiding arrangement, some fluid may pass through regions where heat transfer is less effective. Poor flow distribution can reduce the use of the available heat transfer surface.
However, more turbulence does not automatically mean a better overall design. Increasing turbulence generally requires additional pressure energy, and an unsuitable flow path can create excessive pressure drop or localized high-velocity regions.
The objective is to achieve effective shell-side flow while keeping the pressure drop and mechanical effects within acceptable limits.
Baffle spacing is the distance between adjacent baffles along the shell.
It influences the cross-flow path, shell-side velocity, heat transfer performance, pressure drop, and tube support.
Reducing baffle spacing can direct the fluid across the tube bundle more frequently. Under suitable conditions, this can increase shell-side velocity and improve heat transfer.
However, closer spacing can also increase pressure drop. It may create additional resistance to flow and increase pumping requirements. The arrangement must also allow for practical fabrication, inspection, and cleaning.
Increasing baffle spacing can reduce flow resistance, depending on the exchanger geometry and operating conditions. However, excessive spacing may weaken tube support and allow less effective shell-side flow patterns to develop.
Wider spacing is not automatically more energy-efficient if it compromises heat transfer and requires a larger exchanger to achieve the same duty.
The appropriate baffle spacing is a design trade-off, determined by the required heat duty, shell-side flow rate, allowable pressure drop, tube support requirements, and fluid properties.
Baffle cut refers to the portion of a baffle that is removed to create an opening for fluid to pass through. It is commonly expressed as a percentage of the shell diameter.
Baffle cut affects how fluid moves between adjacent baffle compartments and how it is distributed through the tube bundle.
A smaller cut generally provides a larger cross-flow region, while a larger cut provides a larger window region for fluid to pass through. The resulting effects on velocity, heat transfer, and pressure drop depend on the complete exchanger geometry, including baffle spacing, tube layout, shell diameter, and flow rate.
An unsuitable baffle cut can contribute to poor flow distribution or inefficient use of the heat transfer surface.
For this reason, baffle cut should not be selected independently. It needs to be evaluated together with baffle spacing and the overall shell-side flow arrangement.
Shell-side cross-flow velocity is one of the key factors affected by baffle design.
Appropriate cross-flow can improve turbulence and heat transfer. However, as velocity and flow resistance increase, the pressure drop may also rise. The system may then require more pumping power to maintain the required flow rate.
The design needs to account for several related factors:
Required heat transfer duty
Shell-side flow rate and fluid properties
Allowable shell-side pressure drop
Pumping capacity and energy consumption
Potential erosion or vibration risks
For fluids with high viscosity, suspended solids, or fouling tendencies, the effects of baffle geometry and flow distribution require particular attention.
A good design does not simply maximize velocity. It aims to achieve the required heat transfer performance within the project's hydraulic and mechanical limits.
Baffles also provide support for the tube bundle. Their spacing and arrangement affect the unsupported tube span and the way the tubes respond to fluid forces.
If shell-side flow causes excessive tube vibration, it can contribute to fretting wear, fatigue damage, and potential failure at tube supports or tube-to-tubesheet connections.
The risk depends on several factors, including fluid velocity, tube dimensions, tube layout, support conditions, and the properties of the flowing medium.
Baffles must therefore be designed for both fluid guidance and tube support. Simply increasing shell-side velocity to improve heat transfer may introduce mechanical risks if vibration is not properly evaluated.
For demanding applications, thermal and mechanical design should be considered together to help ensure that the exchanger can operate reliably over its intended service life.
Baffle design can also influence fouling behavior.
Poor flow distribution and low-velocity regions may encourage deposits to accumulate in certain areas. Meanwhile, appropriate flow conditions can help reduce deposition for some types of fouling, although they cannot eliminate every fouling mechanism.
The effectiveness of a fouling-control strategy depends on the process fluid, temperature, suspended solids, scaling tendency, and surface characteristics.
For fluids that are prone to fouling, engineers should consider:
Shell-side flow distribution
Local low-velocity regions
Pressure drop limitations
Tube bundle accessibility
Cleaning methods and frequency
Compatibility with the process fluid
The design should balance heat transfer performance with the practical requirements of inspection and maintenance. A configuration that performs well under clean conditions may not be the most suitable choice if the process fluid deposits solids or requires frequent cleaning.
One of the main challenges in baffle design is balancing thermal performance with hydraulic resistance.
A more aggressive cross-flow arrangement may improve heat transfer, but it can also increase pressure drop and energy consumption. Conversely, reducing flow resistance too much may lower the shell-side heat transfer coefficient or require a larger heat transfer surface.
The appropriate solution depends on the operating requirements rather than one isolated design parameter.
Design factor | Potential benefit | What to consider |
|---|---|---|
Baffle spacing | Influences cross-flow and tube support | Heat transfer, pressure drop, vibration |
Baffle cut | Controls the opening for shell-side flow | Flow distribution and hydraulic resistance |
Shell-side velocity | Affects turbulence and heat transfer | Pumping power, erosion, vibration |
Tube support arrangement | Helps control tube movement | Mechanical reliability and fabrication |
Cleaning accessibility | Supports maintenance | Fouling tendency and inspection requirements |
Engineers should evaluate these factors together with the required heat duty, inlet and outlet temperatures, flow rates, allowable pressure drops, and material properties.
The goal is to achieve the required performance without oversizing the equipment or creating unnecessary operating and maintenance costs.
For equipment buyers, specifying only the heat transfer area or the overall dimensions may not provide enough information to assess whether a heat exchanger is suitable for the application.
Before confirming a design, buyers should provide the manufacturer with the relevant process data, including:
Fluid composition and properties
Flow rates on both sides
Inlet and required outlet temperatures
Operating and design pressures
Allowable pressure drop
Fouling tendency
Material requirements
Cleaning and maintenance expectations
These details help the manufacturer evaluate the baffle arrangement as part of the complete thermal and mechanical design.
Buyers should also ask how the supplier considers tube support, shell-side flow distribution, vibration risk, and inspection requirements. These factors can affect long-term reliability as well as initial heat exchanger performance.
Pretank designs and manufactures shell and tube heat exchangers for industrial applications, including fixed tube sheet, U-tube, floating head, and stuffing box configurations.
Baffle arrangement should be considered alongside the tube bundle, shell dimensions, process fluid, thermal duty, pressure drop, and operating conditions. The appropriate design depends on the specific application rather than a single universal configuration.
Pretank provides customized heat exchanger solutions based on project requirements, with material options selected according to the process fluid, pressure, temperature, and application.
For customers planning a new heat exchanger or replacing existing equipment, sharing accurate process data helps the engineering team evaluate a suitable configuration and balance heat transfer performance, pressure drop, tube support, and maintenance requirements.
Baffle design has a direct influence on shell-side flow, heat transfer, pressure drop, tube support, and fouling behavior in shell and tube heat exchangers.
Baffle spacing and baffle cut should be selected together with shell-side velocity, tube layout, fluid properties, and allowable operating limits. An effective design balances thermal performance with energy consumption, mechanical reliability, and maintenance needs.
When selecting a shell and tube heat exchanger, consider baffle design as part of the complete thermal and mechanical system—not as an isolated component. A well-matched design can help achieve stable heat transfer performance and reliable long-term operation.
