Evaluating the mixing intensity of a chemical mixer involves assessing various mechanical, fluid dynamic, and process-related factors. Here are the key parameters to consider:
Motor Power (kW or HP): Higher power typically results in stronger mixing.
Torque (N·m): Important for high-viscosity materials; higher torque ensures effective movement.
Power per Unit Volume (W/m³): Helps compare different mixers by normalizing power input.

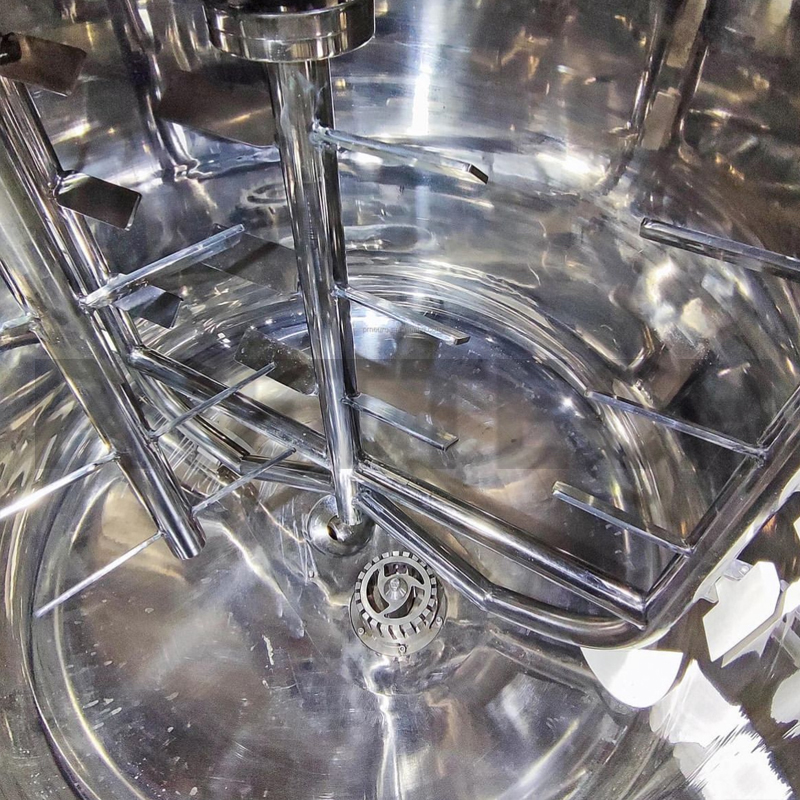

Impeller Type: Different types (e.g., Rushton turbine, propeller, anchor, paddle) generate different flow patterns and shear forces.
Impeller Diameter: A larger impeller at a lower speed may provide better mixing for high-viscosity fluids.
Rotation Speed (RPM):
Low-speed (<100 rpm): Suitable for high-viscosity fluids.
Medium-speed (100–500 rpm): General liquid blending.
High-speed (>500 rpm): High shear applications like emulsification and dispersion.
Reynolds Number (Re = ρND²/μ):
Re < 2,000: Laminar flow (viscous materials, slow mixing).
Re > 10,000: Turbulent flow (efficient mixing, good for low-viscosity liquids).
2,000 < Re < 10,000: Transitional flow.
Axial vs. Radial Flow:
Axial flow (e.g., propeller) promotes top-to-bottom mixing.
Radial flow (e.g., Rushton turbine) enhances shear and turbulence.
Time required for a tracer (dye, conductivity, or temperature) to reach uniform distribution in the mixture.
Shorter mixing time generally indicates higher intensity.
Shear Rate (γ̇ = V/D): Measures velocity gradient in the fluid, important for emulsification and dispersion.
Energy Dissipation per Unit Mass (ε, W/kg):
High values → intense mixing (useful for emulsification, solid suspension).
Low values → gentle mixing (useful for sensitive reactions).
Can be assessed using concentration distribution, particle size distribution, or optical measurement techniques.
A well-mixed system has minimal concentration gradients.
Computational Fluid Dynamics (CFD): Simulations can visualize flow patterns, turbulence, and velocity gradients.
Dye Injection or Particle Tracking: Used in lab tests to assess how well fluids blend over time.
For chemical reactions: Effective mass transfer and uniform concentration distribution are critical.
For suspensions: Preventing sedimentation or ensuring solid dispersion is key.
For emulsions: High shear is needed to break droplets into fine sizes.
Would you like recommendations for a specific type of chemical mixing process? Contact us now！
