Temperature control is one of the most important process parameters in modern winemaking. During fermentation, even relatively small temperature changes can influence yeast activity, fermentation speed, aroma development, and the final character of the wine.
For this reason, stainless steel wine tanks equipped with cooling or heating jackets have become an important part of temperature-controlled winery systems. By transferring heat through the tank wall, a jacketed wine tank allows winemakers to manage fermentation and storage temperatures more precisely without directly contacting the wine with the cooling medium.
Pretank provides stainless steel wine tanks with customized cooling and heating jacket configurations for different winery processes and production requirements.
Fermentation generates heat as yeast converts sugars into alcohol and carbon dioxide. If this heat is not effectively controlled, the wine temperature can rise beyond the desired process range.
Excessive or unstable temperatures may affect:
Yeast activity
Fermentation speed
Aroma development
Wine color and flavor
Fermentation consistency
Overall product quality
Temperature control is therefore not simply a cooling function. It is part of process management throughout fermentation and, in some applications, storage and aging.

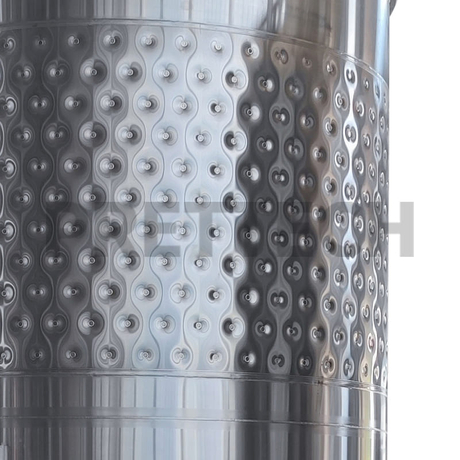

A cooling jacket is installed around the outside of the stainless steel tank. A cooling medium, commonly chilled water or a water-glycol mixture, circulates through the jacket.
As the wine inside the tank releases heat, thermal energy passes through the stainless steel tank wall into the cooling medium. The cooled tank wall then helps bring the wine toward the target temperature.
The basic process can be understood as:
Fermentation Heat → Stainless Steel Tank Wall → Cooling Jacket → Glycol/Water Circuit → Chiller
This indirect heat-transfer method keeps the cooling medium separate from the wine while providing controlled temperature management.
For many wineries, glycol is an effective cooling medium because it can be circulated at temperatures below the normal freezing point of water.
A typical glycol cooling system includes:
Chiller
Glycol storage or buffer tank
Circulation pump
Supply and return pipelines
Tank cooling jackets
Temperature sensors and controls
When the wine temperature rises above the programmed set point, the cooling system can circulate chilled glycol through the jacket to remove excess heat.
The actual cooling capacity and jacket configuration should be selected according to tank volume, fermentation characteristics, ambient conditions, and the required temperature range.
A cooling jacket is only one part of the temperature-control system. Its performance also depends on the tank design and the heat-transfer area available.
Factors that can influence cooling performance include:
Tank capacity
Tank diameter and height
Jacket coverage
Jacket configuration
Stainless steel thickness
Cooling medium temperature
Flow rate
Insulation
Ambient temperature
For larger tanks, an appropriately designed jacket area can help distribute cooling more evenly across the vessel and reduce temperature differences within the wine.
This is why jacket design should be considered together with the tank's dimensions and intended production process rather than treated as a standard accessory.
A cooling system needs accurate temperature information to operate effectively.
A temperature probe installed in the wine tank can continuously monitor the product temperature and provide information to the control system. The cooling system can then respond when the actual temperature moves away from the desired set point.
This creates a basic control loop:
Temperature Measurement → Control System → Cooling/Heating → Temperature Adjustment
Accurate temperature measurement is particularly important during active fermentation, when heat generation can change rapidly.
Temperature requirements vary according to wine style and production process.
White wine fermentation is commonly associated with relatively controlled and cooler fermentation conditions. Maintaining a stable temperature can help winemakers manage fermentation kinetics and preserve desired aromatic characteristics.
Cooling jackets provide the ability to remove fermentation heat and maintain a consistent target temperature throughout the process.
Red wine fermentation can generate considerable heat, particularly when fermentation activity is high. Temperature management is also closely associated with extraction during maceration.
A jacketed fermentation tank allows the winemaker to remove excess heat and maintain the selected process temperature. Depending on the process, the same tank can also be configured with heating capability when additional temperature adjustment is required.
The objective is not simply to keep the wine cold, but to provide controlled and repeatable thermal conditions appropriate for the specific wine and fermentation strategy.
Temperature control does not necessarily end when fermentation is complete.
For wineries that require controlled storage conditions, jacketed stainless steel tanks can provide additional temperature management after fermentation. This can be particularly useful when ambient temperatures fluctuate significantly between seasons.
A jacketed tank can therefore serve multiple functions within a winery, helping reduce the need for separate vessels dedicated exclusively to temperature-controlled processes.
For applications requiring stable temperatures, insulation can be combined with a cooling jacket.
Insulation helps reduce unwanted heat exchange between the tank and surrounding environment. This can reduce thermal losses and allow the cooling system to operate more efficiently.
The appropriate combination of:
Stainless Steel Tank + Cooling Jacket + Insulation + Temperature Probe + Glycol System
creates a more complete temperature-control solution for modern wineries.
Different wineries have different production conditions. A small boutique winery producing limited batches does not necessarily require the same jacket configuration as a large commercial winery.
Tank customization may include:
Cooling jacket area
Jacket position
Number of jacket zones
Tank capacity
Temperature probe location
Insulation requirements
Inlet and outlet connections
Glycol pipeline configuration
Multi-zone jacket designs can also provide greater flexibility by allowing different sections of a tank to be controlled according to the process requirements.
A customized approach helps match the tank's thermal performance to the actual production process.
Pretank manufactures stainless steel wine tanks for fermentation, storage, blending, and other winery applications. Its wine tank range can be configured with cooling and heating jackets, temperature probes, customized fittings, and other process accessories according to project requirements.
Pretank's stainless steel wine tanks are manufactured using hygienic construction principles, with options including AISI 304 and AISI 316L stainless steel, sanitary welding, surface treatment, and customized tank configurations.
From individual jacketed tanks to coordinated winery systems, Pretank can develop equipment around the winery's production process, available space, and temperature-control requirements.
Temperature control directly influences fermentation stability and wine quality. A properly designed cooling jacket provides an effective way to remove fermentation heat and maintain controlled thermal conditions without direct contact between the cooling medium and the wine.
Combined with glycol circulation, temperature probes, insulation, and appropriate process controls, jacketed stainless steel wine tanks give wineries greater control over fermentation and storage.
Pretank provides customized jacketed stainless steel wine tanks designed for reliable temperature control, hygienic production, and long-term winery operation.
