WFT-Cor2
Pretank
500L - 100,000L, volume can be customized
Availability: | |
---|---|
| Product Description
The wine fermentation tank are equipped with a PLC panel, enabling full automation of pump and temperature management.
The corrugated cooling jacket ensures superior heat distribution, allowing for more even and consistent cooling throughout the tank.
The automatic pump over system can effectively soak the grape skins, which is beneficial to the extraction of tannins, pigments and flavors. It also simplifies the fermentation process of red wine and saves labor costs.
| Basic Configuration
Cylindrical Shell
Conical top
Slope bottom
4 legs with adjustable feet and levelling tubes
Top round manhole
Rectangular manhole at side

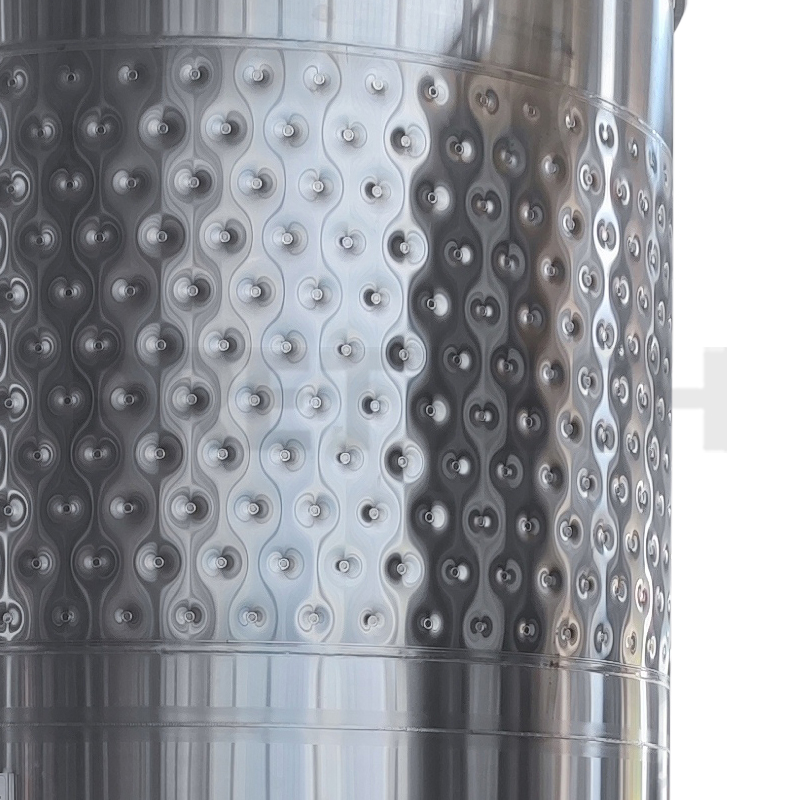

Corrugated cooling jacket
Glycol water inlet&outlet
Pump-over system
Filtering grid
Thermometer
Levelling indicator
Breathing valve
Sample valve
Drainage outlet
Lifting lugsx2
Ladder rack x1
| Product Parameter
Structure | Conical top & Cylindrical body & Flat sloped bottom & Pump-over system |
Material | SS304 |
Jacket type | Corrugated Cooling Jacket |
Insulation | / |
Surface finish | 2B/oil brushed |
Accessories | Manhole, cooling jacket, thermometer, inlet/outlet, drainage, liquid level, pump-over system, sprinkler |
OEM/ODM | Can be customized according to customers' requirements and productions process |
Life time | 2 years |
Model | Volume L | Inner dia. mm | Total High mm | Cydlindrical High mm | Legs High H2:(mm) | Legs no .N | Cooling area (m2) |
WFT | 1000 | 930 | 2200 | 1500 | 350 | 3 | 1.4 |
WFT | 1500 | 1100 | 2300 | 1500 | 350 | 4 | 1.4 |
WFT | 2000 | 1270 | 2600 | 1610 | 350 | 4 | 2.2 |
WFT | 2500 | 1270 | 2900 | 2000 | 350 | 4 | 2.6 |
WFT | 3000 | 1400 | 2900 | 2000 | 350 | 4 | 3 |
WFT | 4000 | 1600 | 3100 | 2000 | 350 | 4 | 4 |
WFT | 5000 | 1600 | 3700 | 2440 | 350 | 4 | 5 |
WFT | 10000 | 1900 | 5050 | 3660 | 350 | 4 | 6 |
We provide OEM&ODM Services,contact us with market@prettech.cn
|
Product Details

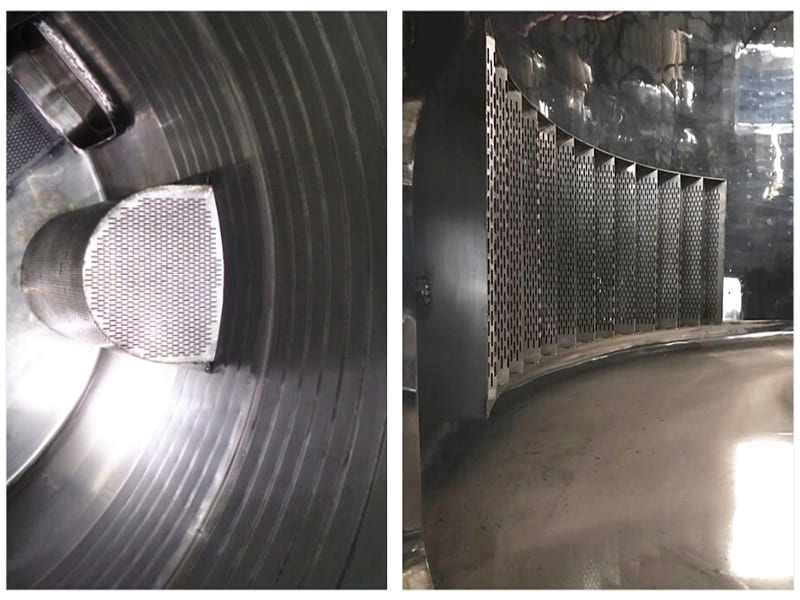

Easy to filter

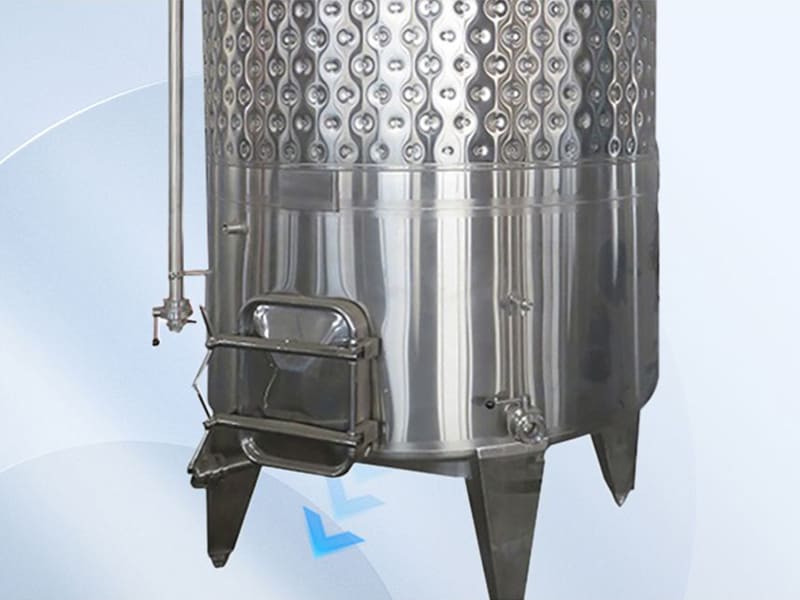

Slope bottom & large rectangular manhole
Internal weldig seams
