WFT-Cor1
Pretank
500L - 100,000L, volume can be customized
Availability: | |
---|---|
| Product Description
The stainless steel wine fermentation tanks are equipped with a PLC panel, enabling full automation of pump and temperature management.
Automatic pump-over tanks reduce labor costs by eliminating manual hose handling, pump connections, and frequent cleaning, saving time and effort in the winery.
The pump gently circulates the juice from the bottom to the top of the tank, soaking the grape skins and extracting the fullest flavor and color. This process also pulls out more tannins, giving the wine a richer, fuller body and a more robust flavor.
| Product Paramenter
Structure | Conical top with Cylindrical Shell, Off-cone bottom |
Material | SS304 |
Jacket type | Cooling jacket |
Insulation | / |
Surface finish | 2B/oil brushed/Internal welds to be ground,pickled&passivated |

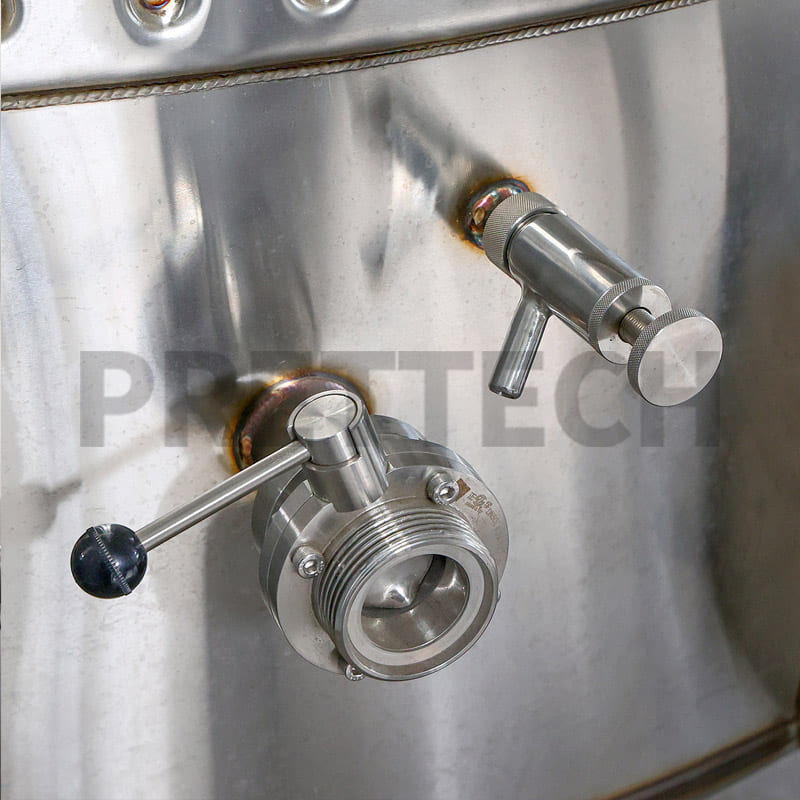

Accessories | Manhole, cooling jacket, sampler, inlet/outlet, drainage, lifting lug, ladder rack, thermometer, liquid leveling , pump-over system, sprinkler, filtering grid |
OEM/ODM | Can be customized according to customers’ requirements and productions process |
Warranty time | 2 years |
Model | Volume (L) | Inner dia. (mm) | Total High (mm) | Cydlindrical High (mm) | Legs High H2:(mm) | Legs no .N | Cooling area (m2) |
WFT | 1000 | 930 | 2200 | 1500 | 350 | 3 | 1.4 |
WFT | 1500 | 1100 | 2300 | 1500 | 350 | 4 | 1.4 |
WFT | 2000 | 1270 | 2600 | 1610 | 350 | 4 | 2.2 |
WFT | 2500 | 1270 | 2900 | 2000 | 350 | 4 | 2.6 |
WFT | 3000 | 1400 | 2900 | 2000 | 350 | 4 | 3 |
WFT | 4000 | 1600 | 3100 | 2000 | 350 | 4 | 4 |
WFT | 5000 | 1600 | 3700 | 2440 | 350 | 4 | 5 |
WFT | 10000 | 1900 | 5050 | 3660 | 350 | 4 | 6 |
We provide OEM&ODM Services,contact us with market@prettech.cn
| Product Features
Slope bottom & large rectangular manhole
| Related Products
| Product Description
The stainless steel wine fermentation tanks are equipped with a PLC panel, enabling full automation of pump and temperature management.
Automatic pump-over tanks reduce labor costs by eliminating manual hose handling, pump connections, and frequent cleaning, saving time and effort in the winery.
The pump gently circulates the juice from the bottom to the top of the tank, soaking the grape skins and extracting the fullest flavor and color. This process also pulls out more tannins, giving the wine a richer, fuller body and a more robust flavor.
| Product Paramenter
Structure | Conical top with Cylindrical Shell, Off-cone bottom |
Material | SS304 |
Jacket type | Cooling jacket |
Insulation | / |
Surface finish | 2B/oil brushed/Internal welds to be ground,pickled&passivated |
Accessories | Manhole, cooling jacket, sampler, inlet/outlet, drainage, lifting lug, ladder rack, thermometer, liquid leveling , pump-over system, sprinkler, filtering grid |
OEM/ODM | Can be customized according to customers’ requirements and productions process |
Warranty time | 2 years |
Model | Volume (L) | Inner dia. (mm) | Total High (mm) | Cydlindrical High (mm) | Legs High H2:(mm) | Legs no .N | Cooling area (m2) |
WFT | 1000 | 930 | 2200 | 1500 | 350 | 3 | 1.4 |
WFT | 1500 | 1100 | 2300 | 1500 | 350 | 4 | 1.4 |
WFT | 2000 | 1270 | 2600 | 1610 | 350 | 4 | 2.2 |
WFT | 2500 | 1270 | 2900 | 2000 | 350 | 4 | 2.6 |
WFT | 3000 | 1400 | 2900 | 2000 | 350 | 4 | 3 |
WFT | 4000 | 1600 | 3100 | 2000 | 350 | 4 | 4 |
WFT | 5000 | 1600 | 3700 | 2440 | 350 | 4 | 5 |
WFT | 10000 | 1900 | 5050 | 3660 | 350 | 4 | 6 |
We provide OEM&ODM Services,contact us with market@prettech.cn
| Product Features
Slope bottom & large rectangular manhole
| Related Products
