Not every winery produces the same volume of wine in every batch.
Vintage conditions, grape varieties, seasonal production, small-batch experimentation, and changing market demand can all result in significant differences in the amount of wine that needs to be fermented or stored. For wineries dealing with variable batch volumes, a fixed-capacity tank may leave excessive headspace when the tank is only partially filled.
This is where a Variable Capacity Tank (VCT) can provide a practical advantage.

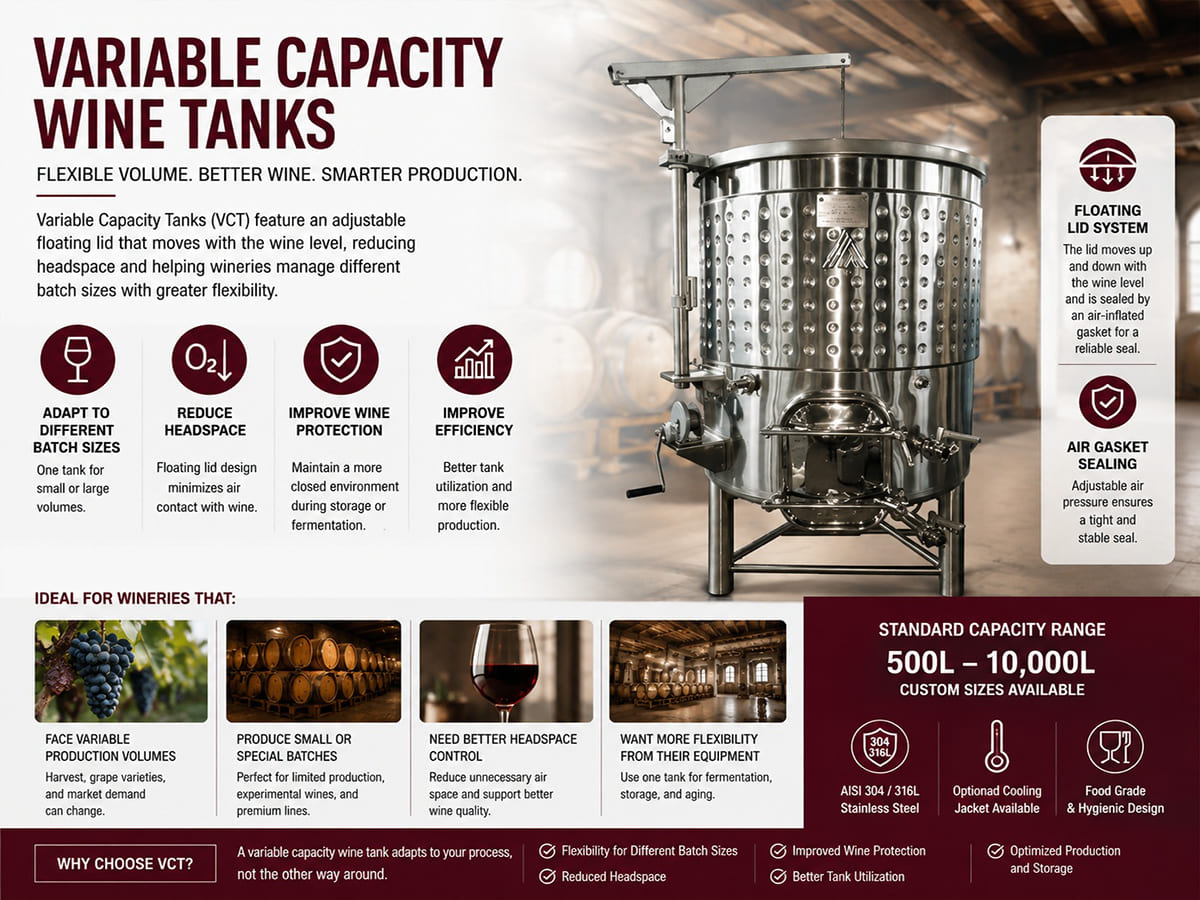

With an adjustable floating lid, a variable capacity wine tank can adapt to different liquid volumes while maintaining a sealed environment above the wine. This makes it particularly useful for small and medium-sized wineries, specialty wine production, and operations that need greater flexibility from their tank fleet. Pretank's VCT range is available from 500 L to 10,000 L, with customized volumes available for different winery requirements.
The key difference is the floating lid system.
Unlike a conventional fixed-capacity wine storage tank, the lid of a VCT can move vertically according to the amount of wine inside the tank. An air-inflated gasket seals the lid against the tank wall, helping reduce the amount of air in contact with the wine.
This allows one tank to accommodate different batch sizes without requiring the winery to dedicate a separate fixed-capacity tank to every production volume.
Pretank's VCT design uses a floating lid, gasket sealing, and an air pump, with sanitary stainless steel construction in AISI 304 or AISI 316L.
A winery may produce different volumes depending on grape availability, wine variety, or production season.
For example, a tank may be filled close to capacity during harvest but only partially filled for a smaller experimental batch later in the year.
Instead of maintaining multiple tanks with different fixed capacities, a VCT provides greater flexibility within a single vessel.
Small-batch wines often require more flexible equipment than large-scale standardized production.
A VCT can be useful for:
Limited-production wines
Experimental batches
Premium or specialty wines
Seasonal products
Pilot-scale production
The adjustable lid allows the tank to match the actual wine volume rather than forcing the winery to select a much larger tank.
Headspace management is an important consideration during wine storage.
When a fixed-capacity tank is only partially filled, a larger volume of air can remain above the wine. A floating lid can be lowered to follow the liquid level, significantly reducing unnecessary headspace.
This creates a more appropriate storage environment and gives winemakers greater control over the space between the wine surface and the tank lid.
A further advantage of variable capacity design is its versatility.
Depending on the configuration and production process, a VCT can be used for both fermentation and storage. Pretank's variable capacity tanks are designed for wine fermentation, storage, and aging, allowing wineries to use the same equipment for different stages of production.
This can be particularly valuable for wineries with limited floor space or those looking to maximize equipment utilization.
The performance of a variable capacity tank depends heavily on the floating lid and sealing system.
The lid needs to move smoothly as the liquid level changes while maintaining an effective seal around the tank.
Pretank's VCT configuration uses an air gasket to seal the floating lid. The air pressure can be adjusted to maintain the required sealing condition as the lid moves with the wine level.
This design provides flexibility while maintaining a closed storage environment.
Variable capacity does not mean compromising on hygiene.
Pretank VCTs are manufactured from sanitary AISI 304 or AISI 316L stainless steel, with an internal 2B finish and external brushed finish. Internal welds are ground, pickled, and passivated to support hygienic operation and easier cleaning.
The tank body also uses a cylindrical design, while Pretank's wine tanks incorporate sanitary construction principles such as smooth welded connections and reduced dead areas to facilitate cleaning.
Variable capacity tanks are highly flexible, but they are not necessarily the ideal solution for every winery.
A conventional fixed-capacity storage tank may be more suitable when:
Production volumes are highly consistent
Tanks are normally operated close to full capacity
Large-scale standardized production is the priority
Dedicated fermentation and storage vessels are already available
For wineries with frequently changing batch volumes, however, the flexibility of a VCT can provide greater equipment utilization.
The right choice ultimately depends on production volume, batch variation, storage requirements, available space, and the winery's process design.
Variable capacity tanks can also be configured with cooling jackets when temperature control is required.
Pretank offers variable capacity wine tanks with cooling jackets, including corrugated jacket configurations designed to provide controlled heat transfer during wine production.
This makes it possible to combine variable volume management with temperature control in applications where fermentation or storage temperature is a critical process parameter.
For wineries with changing production volumes, the value of a VCT is primarily its flexibility.
A well-designed variable capacity wine tank can help wineries:
Handle different batch volumes
Reduce unnecessary headspace
Improve tank utilization
Support small-batch production
Combine fermentation and storage functions
Make better use of limited winery space
Adapt equipment to changing production requirements
Rather than purchasing a separate fixed-capacity tank for every possible batch size, wineries can use variable capacity equipment to create a more adaptable production system.
With stainless steel tank manufacturing experience dating back to 1971, Pretank provides a range of winery tanks covering fermentation, storage, blending, forkable tanks, and variable capacity applications. The company's wine tank portfolio is designed to accommodate different production styles and winery requirements.
Pretank variable capacity wine tanks can be configured with AISI 304 or AISI 316L stainless steel, floating lids, air-gasket sealing, cooling jackets, and customized capacities. Standard VCT models currently cover 500–10,000 L, with other capacities available according to project requirements.
If your winery handles different batch sizes or needs a more flexible fermentation and storage solution, contact Pretank to discuss a customized Variable Capacity Wine Tank for your production requirements.
