What Is a Fixed Tube Sheet Heat Exchanger

Introduction

A fixed tube sheet heat exchanger is one of the most commonly used shell and tube heat exchanger designs in industrial heat transfer applications. In this configuration, both tube sheets are permanently welded or mechanically fixed to the shell, creating a simple, compact, and cost-effective structure.

Due to its robust construction and lower manufacturing cost, the fixed tube sheet heat exchanger is widely used in chemical processing, food production, water cooling systems, HVAC applications, and general industrial services.

How Does a Fixed Tube Sheet Heat Exchanger Work?

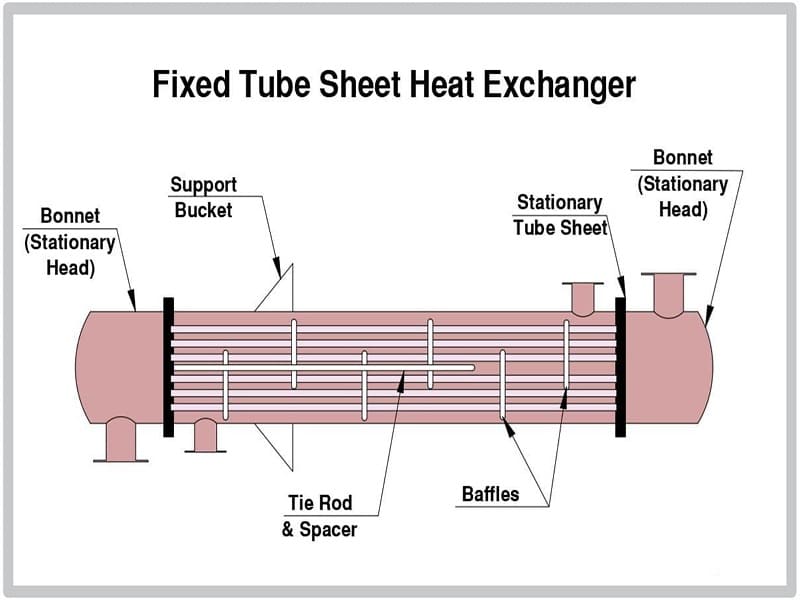

A fixed tube sheet heat exchanger consists of a shell, tube bundle, tube sheets, channel covers, and baffles.

One fluid flows through the tubes while another fluid flows through the shell side. Heat is transferred through the tube walls without mixing the two fluids.

Since both tube sheets are rigidly connected to the shell, the tube bundle cannot be removed for maintenance.

Main Components

• Shell

• Tube Bundle

• Tube Sheets

• Channel Covers

• Baffles

• Nozzles

• Gaskets

Advantages of Fixed Tube Sheet Heat Exchangers

Lower Manufacturing Cost

The fixed tube sheet design is simpler and requires fewer components compared with floating head designs.

Compact Structure

The exchanger occupies less space and offers a straightforward installation process.

High Mechanical Strength

The rigid connection between the shell and tube sheets provides excellent structural stability.

Suitable for Clean Fluids

When fouling is minimal, maintenance requirements are reduced, making this design highly economical.

Disadvantages

Limited Thermal Expansion Compensation

Large temperature differences between shell-side and tube-side fluids can generate thermal stress.

Difficult Mechanical Cleaning

The tube bundle cannot be removed from the shell.

Less Suitable for Fouling Services

Applications involving scaling or deposits may increase maintenance difficulty.

Typical Applications

• Cooling Water Systems

• HVAC Equipment

• Food Processing

• Beverage Production

• General Industrial Heat Transfer

• Clean Chemical Services

Fixed Tube Sheet vs Floating Head Heat Exchanger

For a detailed comparison, see our article: "Difference Between Floating Head and Fixed Tube Sheet Heat Exchanger."

How to Choose a Fixed Tube Sheet Heat Exchanger

Consider:

• Operating temperature

• Pressure requirements

• Fluid cleanliness

• Maintenance frequency

• Budget constraints

When operating conditions are stable and fluids are relatively clean, fixed tube sheet heat exchangers often provide the most cost-effective solution.

Conclusion

A fixed tube sheet heat exchanger is an economical and reliable solution for many industrial heat transfer applications. Its simple design, compact structure, and lower manufacturing cost make it one of the most widely used shell and tube heat exchanger configurations worldwide.If you are unsure whether a fixed tube sheet or floating head heat exchanger is more suitable for your application, our engineers can evaluate your operating conditions and recommend the most cost-effective solution.

For a complete overview of shell and tube heat exchanger designs, including fixed tube sheet, floating head, and U-tube types, see our guide on “Types of Shell and Tube Heat Exchangers”.
