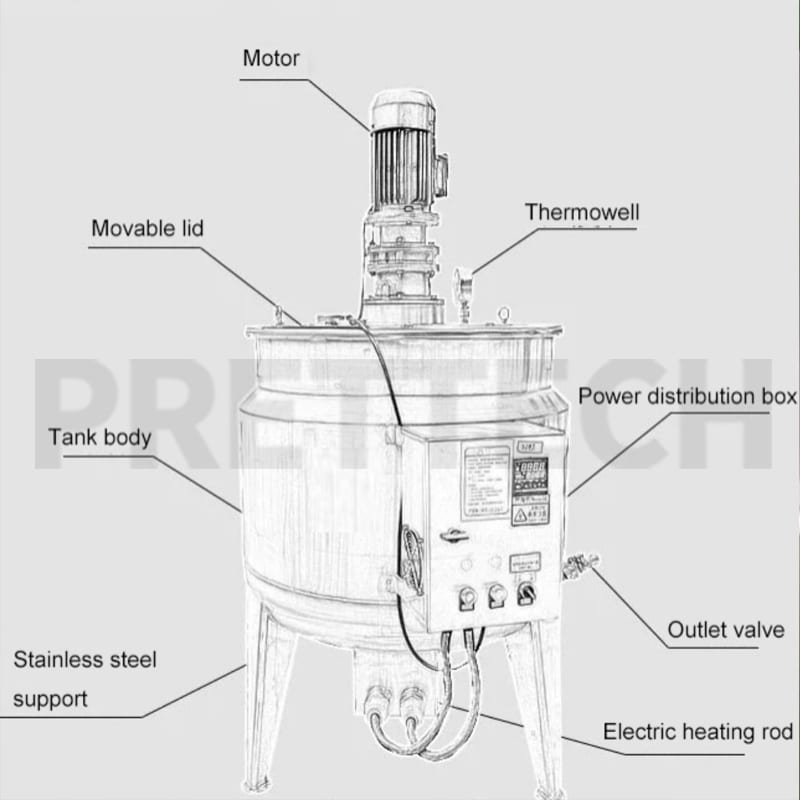

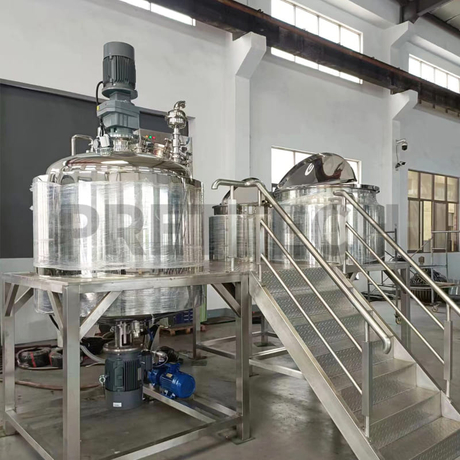

Structure and Key Components of a Stainless Steel Mixing Tank

The structure of a stainless steel mixing tank typically consists of the following main components:

1. Tank Body

• Material: Made of SS304 or SS316L stainless steel for corrosion resistance.

• Shape: Cylindrical, with a flat, conical, or dished bottom.

• Wall Thickness: Varies depending on pressure and application.

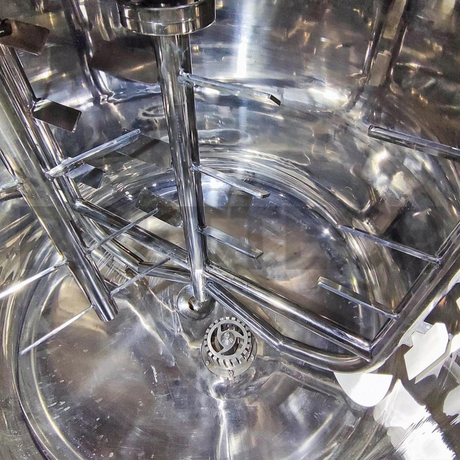

2. Mixing System

• Agitator Type: Propeller, paddle, anchor, turbine, or magnetic stirrer, depending on viscosity and mixing needs.

• Motor & Gearbox: Powers the agitator at controlled speeds.

• Shaft & Blades: Stainless steel construction for durability.

• Sealing Mechanism: Mechanical seal or stuffing box to prevent leakage.




3. Heating/Cooling Jacket (Optional)

• Types:

• Dimple jacket: Suitable for low- and medium-pressure heating/cooling.

• Half-pipe coil jacket: Handles higher pressures.

• Full jacket: Provides uniform temperature control.

• Medium: Steam, hot water, glycol, or chilled water for temperature regulation.




4. Support Structure

• Legs with Adjustable Feet: Ensures stability and height adjustment.

• Skirt or Frame: Reinforces large tanks.




5. Manways & Openings

• Top Manway: For easy access during maintenance.

• Side Manway (for larger tanks): Facilitates cleaning and inspection.

• Inlet & Outlet Ports: For product input and discharge.




6. Control & Monitoring System

• Temperature Sensors: Monitors heating or cooling efficiency.

• Pressure Gauge: For pressurized tanks.

• Level Sensors: Ensures proper liquid volume.




7. CIP (Clean-in-Place) System (Optional)

• Spray Balls: For automatic internal cleaning.

• Drainage System: Ensures complete discharge of liquid and cleaning agents.





Would you like a design recommendation based on your industry, such as wine, juice, or chemical mixing?
