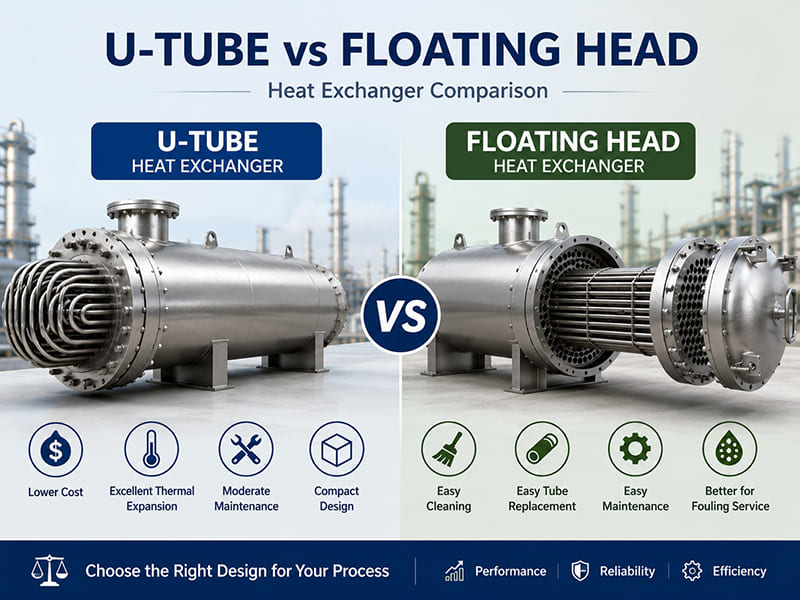

U-Tube vs Floating Head Heat Exchanger

Introduction

U-tube heat exchangers and floating head heat exchangers are two widely used shell and tube heat exchanger designs. Both can accommodate thermal expansion, but they differ significantly in maintenance accessibility, cost, and application suitability.

Selecting the right design depends on process conditions, fouling characteristics, operating temperatures, and maintenance requirements.

Structural Design Comparison

U-Tube Heat Exchanger

A U-tube heat exchanger uses bent tubes connected by a U-shaped return bend. Only one tube sheet is required.

Floating Head Heat Exchanger

A floating head heat exchanger uses straight tubes and a movable tube sheet, allowing the tube bundle to expand freely inside the shell.

Comparison Table

Advantages of U-Tube Heat Exchangers

• Lower cost

• Fewer components

• Excellent thermal expansion accommodation

• Compact design

Advantages of Floating Head Heat Exchangers

• Easy cleaning

• Easy tube replacement

• Better maintenance accessibility

• Suitable for severe fouling conditions

When to Choose U-Tube Heat Exchangers

Choose U-tube designs when:

• Cost is a major concern

• Tube-side cleaning requirements are moderate

• Thermal expansion must be accommodated

When to Choose Floating Head Heat Exchangers

Choose floating head designs when:

• Frequent maintenance is expected

• Fouling fluids are present

• Tube replacement may be required

• Process reliability is critical

Conclusion

While both designs handle thermal expansion effectively, floating head heat exchangers offer superior maintenance accessibility, whereas U-tube heat exchangers provide a more economical solution. The best choice depends on operating conditions and long-term maintenance requirements.

If you are comparing U-tube and floating head heat exchangers for your project, Prettech can provide technical comparison support and recommend the most suitable design based on your process conditions.

For a complete overview of shell and tube heat exchanger designs, including fixed tube sheet, floating head, and U-tube types, see our guide on “Types of Shell and Tube Heat Exchangers”.
